The Higgs to four lepton analysis from the ATLAS Open Data release of 2020, with RDataFrame.

This tutorial is the Higgs to four lepton analysis from the ATLAS Open Data release in 2020 (http://opendata.atlas.cern/release/2020/documentation/). The data was taken with the ATLAS detector during 2016 at a center-of-mass energy of 13 TeV. The decay of the Standard Model Higgs boson to two Z bosons and subsequently to four leptons is called the "golden channel". The selection leads to a narrow invariant mass peak on top a relatively smooth and small background, revealing the Higgs at 125 GeV.

The analysis is translated to a RDataFrame workflow processing about 300 MB of simulated events and data.


import ROOT
import json
import os

# Create a ROOT dataframe for each dataset
# Note that we load the filenames from the external json file placed in the same folder than this script.
path = "root://eospublic.cern.ch//eos/opendata/atlas/OutreachDatasets/2020-01-22"
files = json.load(open(os.path.join(ROOT.gROOT.GetTutorialsDir(), "dataframe/df106_HiggsToFourLeptons.json")))

processes = files.keys()
df = {}
xsecs = {}
sumws = {}
samples = []
for p in processes:
    for d in files[p]:
        # Construct the dataframes
        folder = d[0] # Folder name
        sample = d[1] # Sample name
        xsecs[sample] = d[2] # Cross-section
        sumws[sample] = d[3] # Sum of weights
        samples.append(sample)
        df[sample] = ROOT.RDataFrame("mini", "{}/4lep/{}/{}.4lep.root".format(path, folder, sample))

# Select events for the analysis
ROOT.gInterpreter.Declare("""
using cRVecF = const ROOT::RVecF &;
bool GoodElectronsAndMuons(const ROOT::RVecI & type, cRVecF pt, cRVecF eta, cRVecF phi, cRVecF e, cRVecF trackd0pv, cRVecF tracksigd0pv, cRVecF z0)
{
    for (size_t i = 0; i < type.size(); i++) {
        ROOT::Math::PtEtaPhiEVector p(pt[i] / 1000.0, eta[i], phi[i], e[i] / 1000.0);
        if (type[i] == 11) {
            if (pt[i] < 7000 || abs(eta[i]) > 2.47 || abs(trackd0pv[i] / tracksigd0pv[i]) > 5 || abs(z0[i] * sin(p.Theta())) > 0.5) return false;
        } else {
            if (abs(trackd0pv[i] / tracksigd0pv[i]) > 5 || abs(z0[i] * sin(p.Theta())) > 0.5) return false;
        }
    }
    return true;
}
""")

for s in samples:
    # Select electron or muon trigger
    df[s] = df[s].Filter("trigE || trigM")

    # Select events with exactly four good leptons conserving charge and lepton numbers
    # Note that all collections are RVecs and good_lep is the mask for the good leptons.
    # The lepton types are PDG numbers and set to 11 or 13 for an electron or muon
    # irrespective of the charge.
    df[s] = df[s].Define("good_lep", "abs(lep_eta) < 2.5 && lep_pt > 5000 && lep_ptcone30 / lep_pt < 0.3 && lep_etcone20 / lep_pt < 0.3")\
                 .Filter("Sum(good_lep) == 4")\
                 .Filter("Sum(lep_charge[good_lep]) == 0")\
                 .Define("goodlep_sumtypes", "Sum(lep_type[good_lep])")\
                 .Filter("goodlep_sumtypes == 44 || goodlep_sumtypes == 52 || goodlep_sumtypes == 48")

    # Apply additional cuts depending on lepton flavour
    df[s] = df[s].Filter("GoodElectronsAndMuons(lep_type[good_lep], lep_pt[good_lep], lep_eta[good_lep], lep_phi[good_lep], lep_E[good_lep], lep_trackd0pvunbiased[good_lep], lep_tracksigd0pvunbiased[good_lep], lep_z0[good_lep])")

    # Create new columns with the kinematics of good leptons
    df[s] = df[s].Define("goodlep_pt", "lep_pt[good_lep]")\
                 .Define("goodlep_eta", "lep_eta[good_lep]")\
                 .Define("goodlep_phi", "lep_phi[good_lep]")\
                 .Define("goodlep_E", "lep_E[good_lep]")

    # Select leptons with high transverse momentum
    df[s] = df[s].Filter("goodlep_pt[0] > 25000 && goodlep_pt[1] > 15000 && goodlep_pt[2] > 10000")

# Apply luminosity, scale factors and MC weights for simulated events
lumi = 10064.0
for s in samples:
    if "data" in s:
        df[s] = df[s].Define("weight", "1.0")
    else:
        df[s] = df[s].Define("weight", "scaleFactor_ELE * scaleFactor_MUON * scaleFactor_LepTRIGGER * scaleFactor_PILEUP * mcWeight * {} / {} * {}".format(xsecs[s], sumws[s], lumi))

# Compute invariant mass of the four lepton system and make a histogram
ROOT.gInterpreter.Declare("""
float ComputeInvariantMass(cRVecF pt, cRVecF eta, cRVecF phi, cRVecF e)
{
    ROOT::Math::PtEtaPhiEVector p1(pt[0], eta[0], phi[0], e[0]);
    ROOT::Math::PtEtaPhiEVector p2(pt[1], eta[1], phi[1], e[1]);
    ROOT::Math::PtEtaPhiEVector p3(pt[2], eta[2], phi[2], e[2]);
    ROOT::Math::PtEtaPhiEVector p4(pt[3], eta[3], phi[3], e[3]);
    return (p1 + p2 + p3 + p4).M() / 1000;
}
""")

histos = {}
for s in samples:
    df[s] = df[s].Define("m4l", "ComputeInvariantMass(goodlep_pt, goodlep_eta, goodlep_phi, goodlep_E)")
    histos[s] = df[s].Histo1D(ROOT.RDF.TH1DModel(s, "m4l", 24, 80, 170), "m4l", "weight")

# Run the event loop and merge histograms of the respective processes

# RunGraphs allows to run the event loops of the separate RDataFrame graphs
# concurrently. This results in an improved usage of the available resources
# if each separate RDataFrame can not utilize all available resources, e.g.,
# because not enough data is available.
ROOT.RDF.RunGraphs([histos[s] for s in samples])

def merge_histos(label):
    h = None
    for i, d in enumerate(files[label]):
        t = histos[d[1]].GetValue()
        if i == 0: h = t.Clone()
        else: h.Add(t)
    h.SetNameTitle(label, label)
    return h

data = merge_histos("data")
higgs = merge_histos("higgs")
zz = merge_histos("zz")
other = merge_histos("other")

# Apply MC correction for ZZ due to missing gg->ZZ process
zz.Scale(1.3)

# Create the plot

# Set styles
ROOT.gROOT.SetStyle("ATLAS")

# Create canvas with pad
c = ROOT.TCanvas("c", "", 600, 600)
pad = ROOT.TPad("upper_pad", "", 0, 0, 1, 1)
pad.SetTickx(False)
pad.SetTicky(False)
pad.Draw()
pad.cd()

# Draw stack with MC contributions
stack = ROOT.THStack()
for h, color in zip([other, zz, higgs], [(155, 152, 204), (100, 192, 232), (191, 34, 41)]):
    h.SetLineWidth(1)
    h.SetLineColor(1)
    h.SetFillColor(ROOT.TColor.GetColor(*color))
    stack.Add(h)
stack.Draw("HIST")
stack.GetXaxis().SetLabelSize(0.04)
stack.GetXaxis().SetTitleSize(0.045)
stack.GetXaxis().SetTitleOffset(1.3)
stack.GetXaxis().SetTitle("m_{4l}^{H#rightarrow ZZ} [GeV]")
stack.GetYaxis().SetTitle("Events")
stack.GetYaxis().SetLabelSize(0.04)
stack.GetYaxis().SetTitleSize(0.045)
stack.SetMaximum(33)
stack.GetYaxis().ChangeLabel(1, -1, 0)

# Draw data
data.SetMarkerStyle(20)
data.SetMarkerSize(1.2)
data.SetLineWidth(2)
data.SetLineColor(ROOT.kBlack)
data.Draw("E SAME")

# Add legend
legend = ROOT.TLegend(0.60, 0.65, 0.92, 0.92)
legend.SetTextFont(42)
legend.SetFillStyle(0)
legend.SetBorderSize(0)
legend.SetTextSize(0.04)
legend.SetTextAlign(32)
legend.AddEntry(data, "Data" ,"lep")
legend.AddEntry(higgs, "Higgs", "f")
legend.AddEntry(zz, "ZZ", "f")
legend.AddEntry(other, "Other", "f")
legend.Draw("SAME")

# Add ATLAS label
text = ROOT.TLatex()
text.SetNDC()
text.SetTextFont(72)
text.SetTextSize(0.045)
text.DrawLatex(0.21, 0.86, "ATLAS")
text.SetTextFont(42)
text.DrawLatex(0.21 + 0.16, 0.86, "Open Data")
text.SetTextSize(0.04)
text.DrawLatex(0.21, 0.80, "#sqrt{s} = 13 TeV, 10 fb^{-1}")

# Save the plot

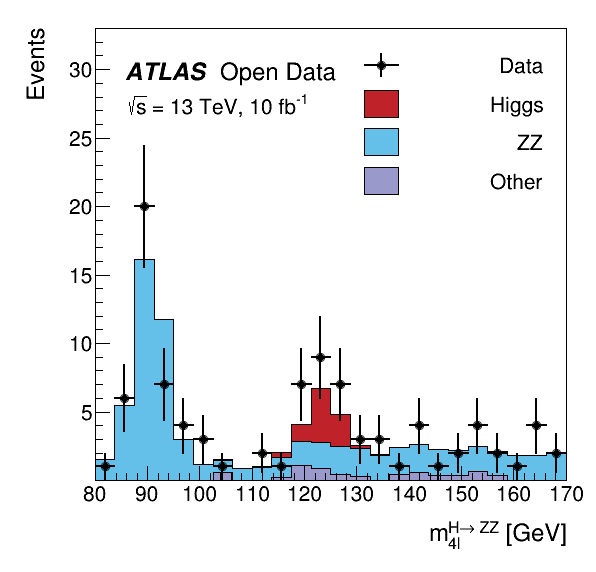

c.SaveAs("df106_HiggsToFourLeptons.png")
print("Saved figure to df106_HiggsToFourLeptons.png")

Saved figure to df106_HiggsToFourLeptons.png
