rf503_wspaceread.py File Reference

Detailed Description

'ORGANIZATION AND SIMULTANEOUS FITS' RooFit tutorial macro #503

Reading and using a workspace

The input file for self macro is generated by rf502_wspaceread.py


import ROOT


# Read workspace from file
# -----------------------------------------------

# Open input file with workspace (generated by rf503_wspacewrite)
f = ROOT.TFile("rf502_workspace_py.root")

# Retrieve workspace from file
w = f.Get("w")

# Retrieve pdf, data from workspace
# -----------------------------------------------------------------

# Retrieve x, and data from workspace
x = w["x"]
model = w["model"]
data = w["modelData"]

# Print structure of composite p.d.f.
model.Print("t")

# Fit model to data, plot model
# ---------------------------------------------------------

# Fit model to data
model.fitTo(data, PrintLevel=-1)

# Plot data and PDF overlaid

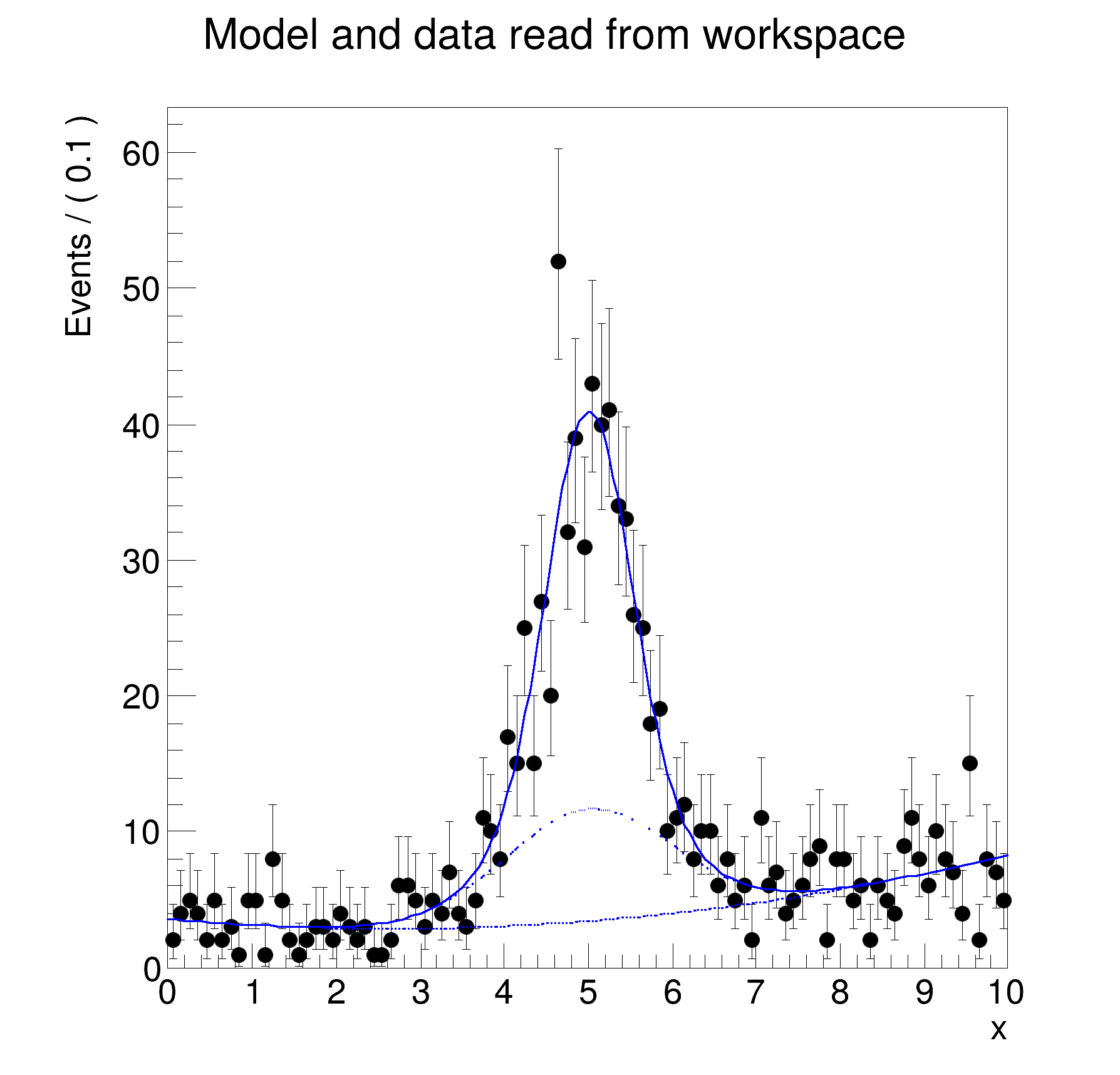

xframe = x.frame(Title="Model and data read from workspace")
data.plotOn(xframe)
model.plotOn(xframe)

# Overlay the background component of model with a dashed line
model.plotOn(xframe, Components="bkg", LineStyle="--")

# Overlay the background+sig2 components of model with a dotted line
model.plotOn(xframe, Components="bkg,sig2", LineStyle=":")

# Draw the frame on the canvas
c = ROOT.TCanvas("rf503_wspaceread", "rf503_wspaceread", 600, 600)
ROOT.gPad.SetLeftMargin(0.15)
xframe.GetYaxis().SetTitleOffset(1.4)
xframe.Draw()

c.SaveAs("rf503_wspaceread.png")

0x555a9ab15510 RooAddPdf::model = 1/1 [Auto,Clean]
  0x555a9e0c6690/V- RooChebychev::bkg = 1 [Auto,Dirty]
    0x555a9ddc1bb0/V- RooRealVar::x = 5
    0x555a9698ae00/V- RooRealVar::a0 = 0.5
    0x555a96983640/V- RooRealVar::a1 = 0
  0x555a9e16dc10/V- RooRealVar::bkgfrac = 0.5
  0x555a9e162e40/V- RooAddPdf::sig = 1/1 [Auto,Clean]
    0x555a9e0e6a30/V- RooGaussian::sig1 = 1 [Auto,Dirty]
      0x555a9ddc1bb0/V- RooRealVar::x = 5
      0x555a9ddc2620/V- RooRealVar::mean = 5
      0x555a96989020/V- RooRealVar::sigma1 = 0.5
    0x555a96985510/V- RooRealVar::sig1frac = 0.8
    0x555a9e0f8e20/V- RooGaussian::sig2 = 1 [Auto,Dirty]
      0x555a9ddc1bb0/V- RooRealVar::x = 5
      0x555a9ddc2620/V- RooRealVar::mean = 5
      0x555a9dd3ec60/V- RooRealVar::sigma2 = 1
[#1] INFO:Fitting -- RooAbsPdf::fitTo(model) fixing normalization set for coefficient determination to observables in data
[#1] INFO:Fitting -- using CPU computation library compiled with -mavx512
[#1] INFO:Fitting -- RooAddition::defaultErrorLevel(nll_model_modelData) Summation contains a RooNLLVar, using its error level
[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: activating const optimization
[#1] INFO:Minimization -- RooAbsMinimizerFcn::setOptimizeConst: deactivating const optimization
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) directly selected PDF components: (bkg)
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) indirectly selected PDF components: ()
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) directly selected PDF components: (bkg,sig2)
[#1] INFO:Plotting -- RooAbsPdf::plotOn(model) indirectly selected PDF components: (sig)

Date

February 2018

Authors

Clemens Lange, Wouter Verkerke (C version)

Definition in file rf503_wspaceread.py.
