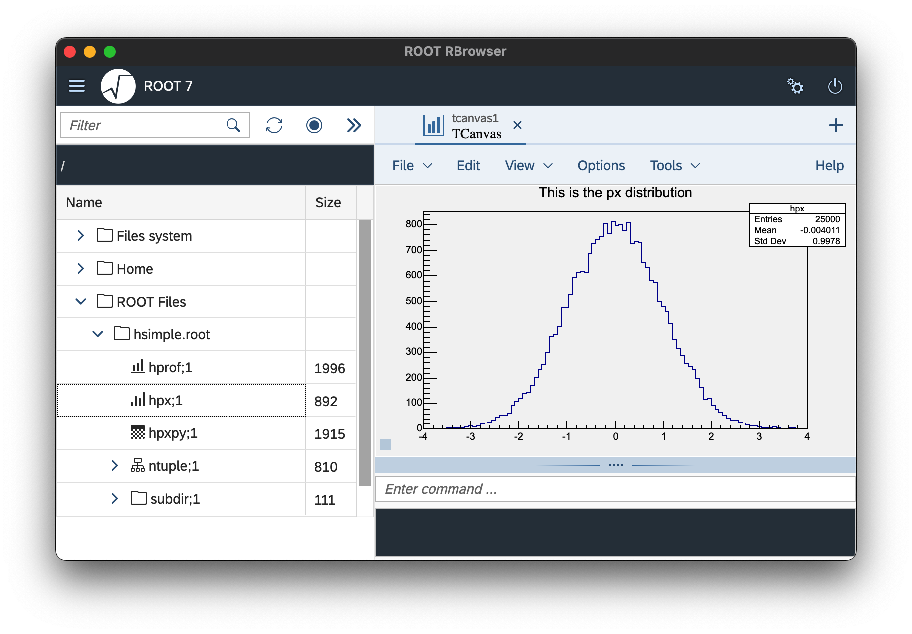

Web-based ROOT files and objects browser.

Definition at line 27 of file RBrowser.hxx.

Public Member Functions
	RBrowser (bool use_rcanvas=false)
	constructor

virtual	~RBrowser ()
	destructor

bool	ActivateWidget (const std::string &title, const std::string &kind="")
	Activate widget in RBrowser One should specify title and (optionally) kind of widget like "tcanvas" or "geom".

void	AddRCanvas ()

void	AddTCanvas ()

void	ClearOnClose (const std::shared_ptr< void > &handle)
	Set handle which will be cleared when connection is closed.

bool	GetCatchWindowShow () const
	Is RWebWindow::Show calls catched for embeding of created widgets.

bool	GetUseRCanvas () const

std::string	GetWindowUrl (bool remote)
	Return URL parameter for the window showing ROOT Browser See ROOT::RWebWindow::GetUrl docu for more details.

void	Hide ()
	hide Browser

void	SetCatchWindowShow (bool on=true)
	Enable/disable catch of RWebWindow::Show calls to embed created widgets, default on.

void	SetUseRCanvas (bool on=true)

void	SetWorkingPath (const std::string &path)
	Set working path in the browser.

void	Show (const RWebDisplayArgs &args="", bool always_start_new_browser=false)
	show Browser in specified place

Protected Member Functions
std::shared_ptr< RBrowserWidget >	AddCatchedWidget (RWebWindow *win, const std::string &kind)
	Add widget catched from external scripts.

void	AddInitWidget (const std::string &kind)
	Create new widget and send init message to the client.

std::shared_ptr< RBrowserWidget >	AddWidget (const std::string &kind)
	Creates new widget.

void	CheckWidgtesModified (unsigned connid)
	Check if any widget was modified and update if necessary.

void	CloseTab (const std::string &name)
	Close and delete specified widget.

std::shared_ptr< RBrowserWidget >	FindWidget (const std::string &name, const std::string &kind="") const
	Find widget by name or kind.

std::shared_ptr< RBrowserWidget >	GetActiveWidget () const

std::string	GetCurrentWorkingDirectory ()
	Return the current directory of ROOT.

std::vector< std::string >	GetRootHistory ()
	Get content of history file.

std::vector< std::string >	GetRootLogs ()
	Get content of log file.

std::string	NewWidgetMsg (std::shared_ptr< RBrowserWidget > &widget)
	Create message which send to client to create new widget.

std::string	ProcessBrowserRequest (const std::string &msg)
	Process browser request.

std::string	ProcessDblClick (unsigned connid, std::vector< std::string > &args)
	Process dbl click on browser item.

void	ProcessMsg (unsigned connid, const std::string &arg)
	Process received message from the client.

void	ProcessPostponedRequests ()
	Process postponed requests - decouple from websocket handling Only requests which can take longer time should be postponed.

void	ProcessRunMacro (const std::string &file_path)
	Process run macro command in the editor.

void	ProcessSaveFile (const std::string &fname, const std::string &content)
	Process file save command in the editor.

void	SendInitMsg (unsigned connid)
	Process client connect.

void	SendProgress (unsigned connid, float progr)
	Send generic progress message to the web window Should show progress bar on client side.

Protected Attributes
std::string	fActiveWidgetName
	! name of active widget

RBrowserData	fBrowsable
	! central browsing element

bool	fCatchWindowShow {true}
	! if arbitrary RWebWindow::Show calls should be catched by browser

unsigned	fConnId {0}
	! default connection id

float	fLastProgressSend {0}
	! last value of send progress

long long	fLastProgressSendTm {0}
	! time when last progress message was send

std::vector< std::vector< std::string > >	fPostponed
	! postponed messages, handled in timer

std::string	fPromptFileOutput
	! file name for prompt output

std::unique_ptr< RBrowserTimer >	fTimer
	! timer to handle postponed requests

std::string	fTitle
	! title

bool	fUseRCanvas {false}
	! which canvas should be used

std::shared_ptr< RWebWindow >	fWebWindow
	! web window to browser

int	fWidgetCnt {0}
	! counter for created widgets

std::vector< std::shared_ptr< RBrowserWidget > >	fWidgets
	! all browser widgets

Friends
class	RBrowserTimer

#include <ROOT/RBrowser.hxx>

Constructor & Destructor Documentation

◆ RBrowser()

RBrowser::RBrowser ( bool use_rcanvas = false )

constructor

Definition at line 277 of file RBrowser.cxx.

◆ ~RBrowser()

RBrowser::~RBrowser ( )

virtual

destructor

Definition at line 358 of file RBrowser.cxx.

Member Function Documentation

◆ ActivateWidget()

bool RBrowser::ActivateWidget	(	const std::string &	title,
		const std::string &	kind = "" )

Activate widget in RBrowser One should specify title and (optionally) kind of widget like "tcanvas" or "geom".

Definition at line 981 of file RBrowser.cxx.

◆ AddCatchedWidget()

std::shared_ptr< RBrowserWidget > RBrowser::AddCatchedWidget	(	RWebWindow *	win,
		const std::string &	kind )

protected

Add widget catched from external scripts.

Definition at line 593 of file RBrowser.cxx.

◆ AddInitWidget()

void RBrowser::AddInitWidget ( const std::string & kind )

protected

Create new widget and send init message to the client.

Definition at line 612 of file RBrowser.cxx.

◆ AddRCanvas()

void ROOT::RBrowser::AddRCanvas ( )

inline

Definition at line 86 of file RBrowser.hxx.

◆ AddTCanvas()

void ROOT::RBrowser::AddTCanvas ( )

inline

Definition at line 85 of file RBrowser.hxx.

◆ AddWidget()

std::shared_ptr< RBrowserWidget > RBrowser::AddWidget ( const std::string & kind )

protected

Creates new widget.

Definition at line 561 of file RBrowser.cxx.

◆ CheckWidgtesModified()

void RBrowser::CheckWidgtesModified ( unsigned connid )

protected

Check if any widget was modified and update if necessary.

Definition at line 772 of file RBrowser.cxx.

◆ ClearOnClose()

void RBrowser::ClearOnClose ( const std::shared_ptr< void > & handle )

Set handle which will be cleared when connection is closed.

Definition at line 1007 of file RBrowser.cxx.

◆ CloseTab()

void RBrowser::CloseTab ( const std::string & name )

protected

Close and delete specified widget.

Definition at line 638 of file RBrowser.cxx.

◆ FindWidget()

std::shared_ptr< RBrowserWidget > RBrowser::FindWidget	(	const std::string &	name,
		const std::string &	kind = "" ) const

protected

Find widget by name or kind.

Definition at line 622 of file RBrowser.cxx.

◆ GetActiveWidget()

std::shared_ptr< RBrowserWidget > ROOT::RBrowser::GetActiveWidget ( ) const

inlineprotected

Definition at line 54 of file RBrowser.hxx.

◆ GetCatchWindowShow()

bool ROOT::RBrowser::GetCatchWindowShow ( ) const

inline

Is RWebWindow::Show calls catched for embeding of created widgets.

Definition at line 102 of file RBrowser.hxx.

◆ GetCurrentWorkingDirectory()

std::string RBrowser::GetCurrentWorkingDirectory ( )

protected

Return the current directory of ROOT.

Definition at line 754 of file RBrowser.cxx.

◆ GetRootHistory()

std::vector< std::string > RBrowser::GetRootHistory ( )

protected

Get content of history file.

Definition at line 651 of file RBrowser.cxx.

◆ GetRootLogs()

std::vector< std::string > RBrowser::GetRootLogs ( )

protected

Get content of log file.

Definition at line 674 of file RBrowser.cxx.

◆ GetUseRCanvas()

bool ROOT::RBrowser::GetUseRCanvas ( ) const

inline

Definition at line 82 of file RBrowser.hxx.

◆ GetWindowUrl()

std::string RBrowser::GetWindowUrl ( bool remote )

Return URL parameter for the window showing ROOT Browser See ROOT::RWebWindow::GetUrl docu for more details.

Definition at line 549 of file RBrowser.cxx.

◆ Hide()

void RBrowser::Hide ( )

hide Browser

Hide ROOT Browser.

Definition at line 539 of file RBrowser.cxx.

◆ NewWidgetMsg()

std::string RBrowser::NewWidgetMsg ( std::shared_ptr< RBrowserWidget > & widget )

protected

Create message which send to client to create new widget.

Definition at line 762 of file RBrowser.cxx.

◆ ProcessBrowserRequest()

std::string RBrowser::ProcessBrowserRequest ( const std::string & msg )

protected

Process browser request.

Definition at line 369 of file RBrowser.cxx.

◆ ProcessDblClick()

std::string RBrowser::ProcessDblClick	(	unsigned	connid,
		std::vector< std::string > &	args )

protected

Process dbl click on browser item.

Definition at line 418 of file RBrowser.cxx.

◆ ProcessMsg()

void RBrowser::ProcessMsg	(	unsigned	connid,
		const std::string &	arg )

protected

Process received message from the client.

Definition at line 821 of file RBrowser.cxx.

◆ ProcessPostponedRequests()

void RBrowser::ProcessPostponedRequests ( )

protected

Process postponed requests - decouple from websocket handling Only requests which can take longer time should be postponed.

Definition at line 794 of file RBrowser.cxx.

◆ ProcessRunMacro()

void RBrowser::ProcessRunMacro ( const std::string & file_path )

protected

Process run macro command in the editor.

Definition at line 404 of file RBrowser.cxx.

◆ ProcessSaveFile()

void RBrowser::ProcessSaveFile	(	const std::string &	fname,
		const std::string &	content )

protected

Process file save command in the editor.

Definition at line 393 of file RBrowser.cxx.

◆ SendInitMsg()

void RBrowser::SendInitMsg ( unsigned connid )

protected

Process client connect.

Definition at line 692 of file RBrowser.cxx.

◆ SendProgress()

void RBrowser::SendProgress	(	unsigned	connid,
		float	progr )

protected

Send generic progress message to the web window Should show progress bar on client side.

Definition at line 735 of file RBrowser.cxx.

◆ SetCatchWindowShow()

void ROOT::RBrowser::SetCatchWindowShow ( bool on = true )

inline

Enable/disable catch of RWebWindow::Show calls to embed created widgets, default on.

Definition at line 99 of file RBrowser.hxx.

◆ SetUseRCanvas()

void ROOT::RBrowser::SetUseRCanvas ( bool on = true )

inline

Definition at line 83 of file RBrowser.hxx.

◆ SetWorkingPath()

void RBrowser::SetWorkingPath ( const std::string & path )

Set working path in the browser.

Definition at line 966 of file RBrowser.cxx.

◆ Show()

void RBrowser::Show	(	const RWebDisplayArgs &	args = "",
		bool	always_start_new_browser = false )

show Browser in specified place

Show or update RBrowser in web window If web window already started - just refresh it like "reload" button does If no web window exists or.

Parameters

always_start_new_browser	configured, starts new window
args	display arguments

Definition at line 527 of file RBrowser.cxx.

Friends And Related Symbol Documentation

◆ RBrowserTimer

friend class RBrowserTimer

friend

Definition at line 29 of file RBrowser.hxx.

Member Data Documentation

◆ fActiveWidgetName

std::string ROOT::RBrowser::fActiveWidgetName

protected

! name of active widget

Definition at line 38 of file RBrowser.hxx.

◆ fBrowsable

RBrowserData ROOT::RBrowser::fBrowsable

protected

! central browsing element

Definition at line 47 of file RBrowser.hxx.

◆ fCatchWindowShow

bool ROOT::RBrowser::fCatchWindowShow {true}

protected

! if arbitrary RWebWindow::Show calls should be catched by browser

Definition at line 37 of file RBrowser.hxx.

◆ fConnId

unsigned ROOT::RBrowser::fConnId {0}

protected

! default connection id

Definition at line 34 of file RBrowser.hxx.

◆ fLastProgressSend

float ROOT::RBrowser::fLastProgressSend {0}

protected

! last value of send progress

Definition at line 42 of file RBrowser.hxx.

◆ fLastProgressSendTm

long long ROOT::RBrowser::fLastProgressSendTm {0}

protected

! time when last progress message was send

Definition at line 43 of file RBrowser.hxx.

◆ fPostponed

std::vector<std::vector<std::string> > ROOT::RBrowser::fPostponed

protected

! postponed messages, handled in timer

Definition at line 49 of file RBrowser.hxx.

◆ fPromptFileOutput

std::string ROOT::RBrowser::fPromptFileOutput

protected

! file name for prompt output

Definition at line 41 of file RBrowser.hxx.

◆ fTimer

std::unique_ptr<RBrowserTimer> ROOT::RBrowser::fTimer

protected

! timer to handle postponed requests

Definition at line 48 of file RBrowser.hxx.

◆ fTitle

std::string ROOT::RBrowser::fTitle

protected

! title

Definition at line 33 of file RBrowser.hxx.

◆ fUseRCanvas

bool ROOT::RBrowser::fUseRCanvas {false}

protected

! which canvas should be used

Definition at line 36 of file RBrowser.hxx.

◆ fWebWindow

std::shared_ptr<RWebWindow> ROOT::RBrowser::fWebWindow

protected

! web window to browser

Definition at line 45 of file RBrowser.hxx.

◆ fWidgetCnt

int ROOT::RBrowser::fWidgetCnt {0}

protected

! counter for created widgets

Definition at line 40 of file RBrowser.hxx.

◆ fWidgets

std::vector<std::shared_ptr<RBrowserWidget> > ROOT::RBrowser::fWidgets

protected

! all browser widgets

Definition at line 39 of file RBrowser.hxx.

Libraries for ROOT::RBrowser:

[legend]

The documentation for this class was generated from the following files:

gui/browserv7/inc/ROOT/RBrowser.hxx
gui/browserv7/src/RBrowser.cxx

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Constructor & Destructor Documentation

◆ RBrowser()

◆ ~RBrowser()

Member Function Documentation

◆ ActivateWidget()

◆ AddCatchedWidget()

◆ AddInitWidget()

◆ AddRCanvas()

◆ AddTCanvas()

◆ AddWidget()

◆ CheckWidgtesModified()

◆ ClearOnClose()

◆ CloseTab()

◆ FindWidget()

◆ GetActiveWidget()

◆ GetCatchWindowShow()

◆ GetCurrentWorkingDirectory()

◆ GetRootHistory()

◆ GetRootLogs()

◆ GetUseRCanvas()

◆ GetWindowUrl()

◆ Hide()

◆ NewWidgetMsg()

◆ ProcessBrowserRequest()

◆ ProcessDblClick()

◆ ProcessMsg()

◆ ProcessPostponedRequests()

◆ ProcessRunMacro()

◆ ProcessSaveFile()

◆ SendInitMsg()

◆ SendProgress()

◆ SetCatchWindowShow()

◆ SetUseRCanvas()

◆ SetWorkingPath()

◆ Show()

Friends And Related Symbol Documentation

◆ RBrowserTimer

Member Data Documentation

◆ fActiveWidgetName

◆ fBrowsable

◆ fCatchWindowShow

◆ fConnId

◆ fLastProgressSend

◆ fLastProgressSendTm

◆ fPostponed

◆ fPromptFileOutput

◆ fTimer

◆ fTitle

◆ fUseRCanvas

◆ fWebWindow

◆ fWidgetCnt

◆ fWidgets
