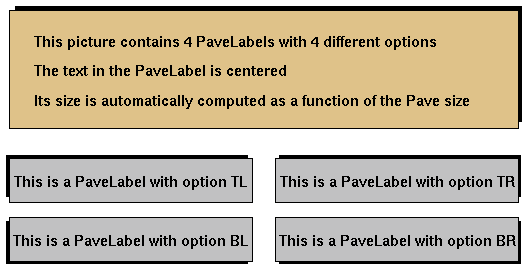

A Pave (see TPave) with a text centered in the Pave.

Definition at line 20 of file TPaveLabel.h.

Public Member Functions
	TPaveLabel ()
	Pavelabel default constructor.

	TPaveLabel (const TPaveLabel &pavelabel)
	TPaveLabel copy constructor.

	TPaveLabel (Double_t x1, Double_t y1, Double_t x2, Double_t y2, const char label, Option_t option="br")
	Pavelabel normal constructor.

	~TPaveLabel () override
	TPaveLabel default destructor.

void	Copy (TObject &pavelabel) const override
	Copy this pavelabel to pavelabel.

void	Draw (Option_t *option="") override
	Draw this pavelabel with its current attributes.

virtual TPaveLabel *	DrawPaveLabel (Double_t x1, Double_t y1, Double_t x2, Double_t y2, const char label, Option_t option="")
	Draw this pavelabel with new coordinates.

const char *	GetLabel () const

const char *	GetTitle () const override
	Returns title of object.

TClass *	IsA () const override

TPaveLabel &	operator= (const TPaveLabel &pavelabel)
	TPaveLabel assign operator.

void	Paint (Option_t *option="") override
	Paint this pavelabel with its current attributes.

virtual void	PaintPaveLabel (Double_t x1, Double_t y1, Double_t x2, Double_t y2, const char label, Option_t option="")
	Draw this pavelabel with new coordinates.

void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save primitive as a C++ statement(s) on output stream out.

virtual void	SetLabel (const char *label)

void	Streamer (TBuffer &) override
	Stream an object of class TPave.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TPave
	TPave ()
	Pave default constructor.

	TPave (const TPave &pave)
	Pave copy constructor.

	TPave (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Int_t bordersize=4, Option_t *option="br")
	Pave normal constructor.

	~TPave () override
	Pave default destructor.

virtual void	ConvertNDCtoPad ()
	Convert pave coordinates from NDC to Pad coordinates.

Int_t	DistancetoPrimitive (Int_t px, Int_t py) override
	Compute distance from point px,py to a pave.

virtual TPave *	DrawPave (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Int_t bordersize=4, Option_t *option="br")
	Draw this pave with new coordinates.

void	ExecuteEvent (Int_t event, Int_t px, Int_t py) override
	Execute action corresponding to one event.

Int_t	GetBorderSize () const

Double_t	GetCornerRadius () const

const char *	GetName () const override
	Returns name of object.

Option_t *	GetOption () const override

Int_t	GetShadowColor () const

Double_t	GetX1NDC () const

Double_t	GetX2NDC () const

Double_t	GetY1NDC () const

Double_t	GetY2NDC () const

ULong_t	Hash () const override
	Return hash value for this object.

Bool_t	IsSortable () const override

void	ls (Option_t *option="") const override
	List this pave with its attributes.

TPave &	operator= (const TPave &src)
	Assignment operator.

virtual void	PaintPave (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Int_t bordersize=4, Option_t *option="br")
	Draw this pave with new coordinates.

virtual void	PaintPaveArc (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Int_t bordersize=4, Option_t *option="br")
	Draw this pave with rounded corners.

void	Print (Option_t *option="") const override
	Dump this pave with its attributes.

virtual void	SetBorderSize (Int_t bordersize=4)
	Sets the border size of the TPave box and shadow.

virtual void	SetCornerRadius (Double_t rad=0.2)

virtual void	SetName (const char *name="")

virtual void	SetOption (Option_t *option="br")

virtual void	SetShadowColor (Int_t color)

void	SetX1 (Double_t x1) override
	Set the X1 value.

virtual void	SetX1NDC (Double_t x1)

void	SetX2 (Double_t x2) override
	Set the X2 value.

virtual void	SetX2NDC (Double_t x2)

void	SetY1 (Double_t y1) override
	Set the Y1 value.

virtual void	SetY1NDC (Double_t y1)

void	SetY2 (Double_t y2) override
	Set the Y2 value.

virtual void	SetY2NDC (Double_t y2)

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TBox
	TBox ()
	Box default constructor.

	TBox (const TBox &box)
	Box copy constructor.

	TBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2)
	Box standard constructor.

	~TBox () override
	Box destructor.

virtual TBox *	DrawBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2)
	Draw this box with new coordinates.

Rectangle_t	GetBBox () override
	Return the "bounding Box" of the Box.

TPoint	GetBBoxCenter () override
	Return the center of the Box as TPoint in pixels.

Double_t	GetX1 () const

Double_t	GetX2 () const

Double_t	GetY1 () const

Double_t	GetY2 () const

virtual void	HideToolTip (Int_t event)
	Hide tool tip depending on the event type.

Bool_t	IsBeingResized () const

virtual Int_t	IsInside (Double_t x, Double_t y) const
	Function which returns 1 if point x,y lies inside the box, 0 otherwise.

TBox &	operator= (const TBox &)
	Assignment operator.

virtual void	PaintBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Option_t *option="")
	Draw this box with new coordinates.

void	SetBBoxCenter (const TPoint &p) override
	Set center of the Box.

void	SetBBoxCenterX (const Int_t x) override
	Set X coordinate of the center of the Box.

void	SetBBoxCenterY (const Int_t y) override
	Set Y coordinate of the center of the Box.

void	SetBBoxX1 (const Int_t x) override
	Set left hand side of BoundingBox to a value (resize in x direction on left)

void	SetBBoxX2 (const Int_t x) override
	Set right hand side of BoundingBox to a value (resize in x direction on right)

void	SetBBoxY1 (const Int_t y) override
	Set top of BoundingBox to a value (resize in y direction on top)

void	SetBBoxY2 (const Int_t y) override
	Set bottom of BoundingBox to a value (resize in y direction on bottom)

virtual void	SetToolTipText (const char *text, Long_t delayms=1000)
	Set tool tip text associated with this box.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()
	TObject constructor.

	TObject (const TObject &object)
	TObject copy ctor.

virtual	~TObject ()
	TObject destructor.

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.

ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char *	ClassName () const
	Returns name of class to which the object belongs.

virtual void	Clear (Option_t *="")

virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility.

virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method.

virtual void	Delete (Option_t *option="")
	Delete this object.

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: `gROOT->SetSelectedPad(c1)`.

virtual void	Dump () const
	Dump contents of object on stdout.

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.

virtual const char *	GetIconName () const
	Returns mime type name of object.

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).

virtual UInt_t	GetUniqueID () const
	Return the unique object id.

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.

Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const
	IsDestructed.

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.

void	operator delete (void *ptr)
	Operator delete.

void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.

void	operator delete[] (void *ptr)
	Operator delete [].

void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)
	TObject assignment operator.

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename.

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Public Member Functions inherited from TAttLine
	TAttLine ()
	AttLine default constructor.

	TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
	AttLine normal constructor.

virtual	~TAttLine ()
	AttLine destructor.

void	Copy (TAttLine &attline) const
	Copy this line attributes to a new TAttLine.

Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
	Compute distance from point px,py to a line.

virtual Color_t	GetLineColor () const
	Return the line color.

virtual Style_t	GetLineStyle () const
	Return the line style.

virtual Width_t	GetLineWidth () const
	Return the line width.

virtual void	Modify ()
	Change current line attributes if necessary.

virtual void	ResetAttLine (Option_t *option="")
	Reset this line attributes to default values.

virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
	Save line attributes as C++ statement(s) on output stream out.

virtual void	SetLineAttributes ()
	Invoke the DialogCanvas Line attributes.

virtual void	SetLineColor (Color_t lcolor)
	Set the line color.

virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
	Set a transparent line color.

virtual void	SetLineStyle (Style_t lstyle)
	Set the line style.

virtual void	SetLineWidth (Width_t lwidth)
	Set the line width.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TAttFill
	TAttFill ()
	AttFill default constructor.

	TAttFill (Color_t fcolor, Style_t fstyle)
	AttFill normal constructor.

virtual	~TAttFill ()
	AttFill destructor.

void	Copy (TAttFill &attfill) const
	Copy this fill attributes to a new TAttFill.

virtual Color_t	GetFillColor () const
	Return the fill area color.

virtual Style_t	GetFillStyle () const
	Return the fill area style.

virtual Bool_t	IsTransparent () const

virtual void	Modify ()
	Change current fill area attributes if necessary.

virtual void	ResetAttFill (Option_t *option="")
	Reset this fill attributes to default values.

virtual void	SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
	Save fill attributes as C++ statement(s) on output stream out.

virtual void	SetFillAttributes ()
	Invoke the DialogCanvas Fill attributes.

virtual void	SetFillColor (Color_t fcolor)
	Set the fill area color.

virtual void	SetFillColorAlpha (Color_t fcolor, Float_t falpha)
	Set a transparent fill color.

virtual void	SetFillStyle (Style_t fstyle)
	Set the fill area style.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TAttBBox2D
virtual	~TAttBBox2D ()

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TAttText
	TAttText ()
	AttText default constructor.

	TAttText (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize)
	AttText normal constructor.

virtual	~TAttText ()
	AttText destructor.

void	Copy (TAttText &atttext) const
	Copy this text attributes to a new TAttText.

virtual Short_t	GetTextAlign () const
	Return the text alignment.

virtual Float_t	GetTextAngle () const
	Return the text angle.

virtual Color_t	GetTextColor () const
	Return the text color.

virtual Font_t	GetTextFont () const
	Return the text font.

virtual Float_t	GetTextSize () const
	Return the text size.

virtual Float_t	GetTextSizePercent (Float_t size)
	Return the text in percent of the pad size.

virtual void	Modify ()
	Change current text attributes if necessary.

virtual void	ResetAttText (Option_t *toption="")
	Reset this text attributes to default values.

virtual void	SaveTextAttributes (std::ostream &out, const char *name, Int_t alidef=12, Float_t angdef=0, Int_t coldef=1, Int_t fondef=61, Float_t sizdef=1)
	Save text attributes as C++ statement(s) on output stream out.

virtual void	SetTextAlign (Short_t align=11)
	Set the text alignment.

virtual void	SetTextAngle (Float_t tangle=0)
	Set the text angle.

virtual void	SetTextAttributes ()
	Invoke the DialogCanvas Text attributes.

virtual void	SetTextColor (Color_t tcolor=1)
	Set the text color.

virtual void	SetTextColorAlpha (Color_t tcolor, Float_t talpha)
	Set a transparent text color.

virtual void	SetTextFont (Font_t tfont=62)
	Set the text font.

virtual void	SetTextSize (Float_t tsize=1)
	Set the text size.

virtual void	SetTextSizePixels (Int_t npixels)
	Set the text size in pixel.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TPave
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TBox
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()
	Return destructor only flag.

static Bool_t	GetObjectStat ()
	Get status of object stat flag.

static void	SetDtorOnly (void *obj)
	Set destructor only flag.

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Static Public Member Functions inherited from TAttLine
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TAttFill
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TAttBBox2D
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TAttText
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Protected Attributes
TString	fLabel
	Label written at the center of Pave.

Protected Attributes inherited from TPave
Int_t	fBorderSize
	window box bordersize in pixels

Double_t	fCornerRadius
	Corner radius in case of option arc.

Int_t	fInit
	(=0 if transformation to NDC not yet done)

TString	fName
	Pave name.

TString	fOption
	Pave style.

Int_t	fShadowColor
	Color of the pave's shadow.

Double_t	fX1NDC
	X1 point in NDC coordinates.

Double_t	fX2NDC
	X2 point in NDC coordinates.

Double_t	fY1NDC
	Y1 point in NDC coordinates.

Double_t	fY2NDC
	Y2 point in NDC coordinates.

Protected Attributes inherited from TBox
Bool_t	fResizing
	! True if box is being resized

Double_t	fX1
	X of 1st point.

Double_t	fX2
	X of 2nd point.

Double_t	fY1
	Y of 1st point.

Double_t	fY2
	Y of 2nd point.

Protected Attributes inherited from TAttLine
Color_t	fLineColor
	Line color.

Style_t	fLineStyle
	Line style.

Width_t	fLineWidth
	Line width.

Protected Attributes inherited from TAttFill
Color_t	fFillColor
	Fill area color.

Style_t	fFillStyle
	Fill area style.

Protected Attributes inherited from TAttText
Short_t	fTextAlign
	Text alignment.

Float_t	fTextAngle
	Text angle.

Color_t	fTextColor
	Text color.

Font_t	fTextFont
	Text font.

Float_t	fTextSize
	Text size.

Additional Inherited Members
Public Types inherited from TPave
enum	{ kNameIsAction = (1ULL << ( 11 )) }

Public Types inherited from TBox
enum	{ kCannotMove = (1ULL << ( 12 )) }

Public Types inherited from TObject
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }

enum	{ kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum	EStatusBits { kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) , kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 )) }

Protected Types inherited from TObject
enum	{ kOnlyPrepStep = (1ULL << ( 3 )) }

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).

void	MakeZombie ()

#include <TPaveLabel.h>

Inheritance diagram for TPaveLabel:

[legend]

Constructor & Destructor Documentation

◆ TPaveLabel() [1/3]

TPaveLabel::TPaveLabel ( )

Pavelabel default constructor.

Definition at line 32 of file TPaveLabel.cxx.

◆ TPaveLabel() [2/3]

TPaveLabel::TPaveLabel	(	Double_t	x1,
		Double_t	y1,
		Double_t	x2,
		Double_t	y2,
		const char *	label,
		Option_t *	option = "br" )

Pavelabel normal constructor.

a PaveLabel is a Pave with a label centered in the Pave The Pave is by default defined bith bordersize=5 and option ="br". The text size is automatically computed as a function of the pave size. To remove the shadow or border of a TPaveLabel, use the function TPave::SetBorderSize

Definition at line 44 of file TPaveLabel.cxx.

◆ TPaveLabel() [3/3]

TPaveLabel::TPaveLabel ( const TPaveLabel & pavelabel )

TPaveLabel copy constructor.

Definition at line 60 of file TPaveLabel.cxx.

◆ ~TPaveLabel()

TPaveLabel::~TPaveLabel ( )

override

TPaveLabel default destructor.

Definition at line 53 of file TPaveLabel.cxx.

Member Function Documentation

◆ Class()

static TClass * TPaveLabel::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * TPaveLabel::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t TPaveLabel::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 44 of file TPaveLabel.h.

◆ Copy()

void TPaveLabel::Copy ( TObject & pavelabel ) const

overridevirtual

Copy this pavelabel to pavelabel.

Reimplemented from TPave.

Definition at line 78 of file TPaveLabel.cxx.

◆ DeclFileName()

static const char * TPaveLabel::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 44 of file TPaveLabel.h.

◆ Draw()

void TPaveLabel::Draw ( Option_t * option = "" )

overridevirtual

Draw this pavelabel with its current attributes.

Reimplemented from TPave.

Definition at line 88 of file TPaveLabel.cxx.

◆ DrawPaveLabel()

TPaveLabel * TPaveLabel::DrawPaveLabel	(	Double_t	x1,
		Double_t	y1,
		Double_t	x2,
		Double_t	y2,
		const char *	label,
		Option_t *	option = "" )

virtual

Draw this pavelabel with new coordinates.

Definition at line 100 of file TPaveLabel.cxx.

◆ GetLabel()

const char * TPaveLabel::GetLabel ( ) const

inline

Definition at line 36 of file TPaveLabel.h.

◆ GetTitle()

const char * TPaveLabel::GetTitle ( ) const

inlineoverridevirtual

Returns title of object.

This default method returns the class title (i.e. description). Classes that give objects a title should override this method.

Reimplemented from TObject.

Definition at line 37 of file TPaveLabel.h.

◆ IsA()

TClass * TPaveLabel::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TPave.

Definition at line 44 of file TPaveLabel.h.

◆ operator=()

TPaveLabel & TPaveLabel::operator= ( const TPaveLabel & pavelabel )

TPaveLabel assign operator.

Definition at line 68 of file TPaveLabel.cxx.

◆ Paint()

void TPaveLabel::Paint ( Option_t * option = "" )

overridevirtual

Paint this pavelabel with its current attributes.

Reimplemented from TPave.

Definition at line 111 of file TPaveLabel.cxx.

◆ PaintPaveLabel()

void TPaveLabel::PaintPaveLabel	(	Double_t	x1,
		Double_t	y1,
		Double_t	x2,
		Double_t	y2,
		const char *	label,
		Option_t *	option = "" )

virtual

Draw this pavelabel with new coordinates.

Definition at line 122 of file TPaveLabel.cxx.

◆ SavePrimitive()

void TPaveLabel::SavePrimitive	(	std::ostream &	out,
		Option_t *	option = "" )

overridevirtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TPave.

Definition at line 201 of file TPaveLabel.cxx.

◆ SetLabel()

virtual void TPaveLabel::SetLabel ( const char * label )

inlinevirtual

Definition at line 42 of file TPaveLabel.h.

◆ Streamer()

void TPaveLabel::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TPave.

Reimplemented from TPave.

◆ StreamerNVirtual()

void TPaveLabel::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 44 of file TPaveLabel.h.

Member Data Documentation

◆ fLabel

TString TPaveLabel::fLabel

protected

Label written at the center of Pave.

Definition at line 23 of file TPaveLabel.h.

Libraries for TPaveLabel:

[legend]

The documentation for this class was generated from the following files:

graf2d/graf/inc/TPaveLabel.h
graf2d/graf/src/TPaveLabel.cxx

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ TPaveLabel() [1/3]

◆ TPaveLabel() [2/3]

◆ TPaveLabel() [3/3]

◆ ~TPaveLabel()

Member Function Documentation

◆ Class()

◆ Class_Name()

◆ Class_Version()

◆ Copy()

◆ DeclFileName()

◆ Draw()

◆ DrawPaveLabel()

◆ GetLabel()

◆ GetTitle()

◆ IsA()

◆ operator=()

◆ Paint()

◆ PaintPaveLabel()

◆ SavePrimitive()

◆ SetLabel()

◆ Streamer()

◆ StreamerNVirtual()

Member Data Documentation

◆ fLabel
