Base class for several text objects.

See TAttText for a list of text attributes or fonts, and also for a discussion on text speed and font quality.

By default, the text is drawn in the pad coordinates system. One can draw in NDC coordinates [0,1] if the function SetNDC is called for a TText object.

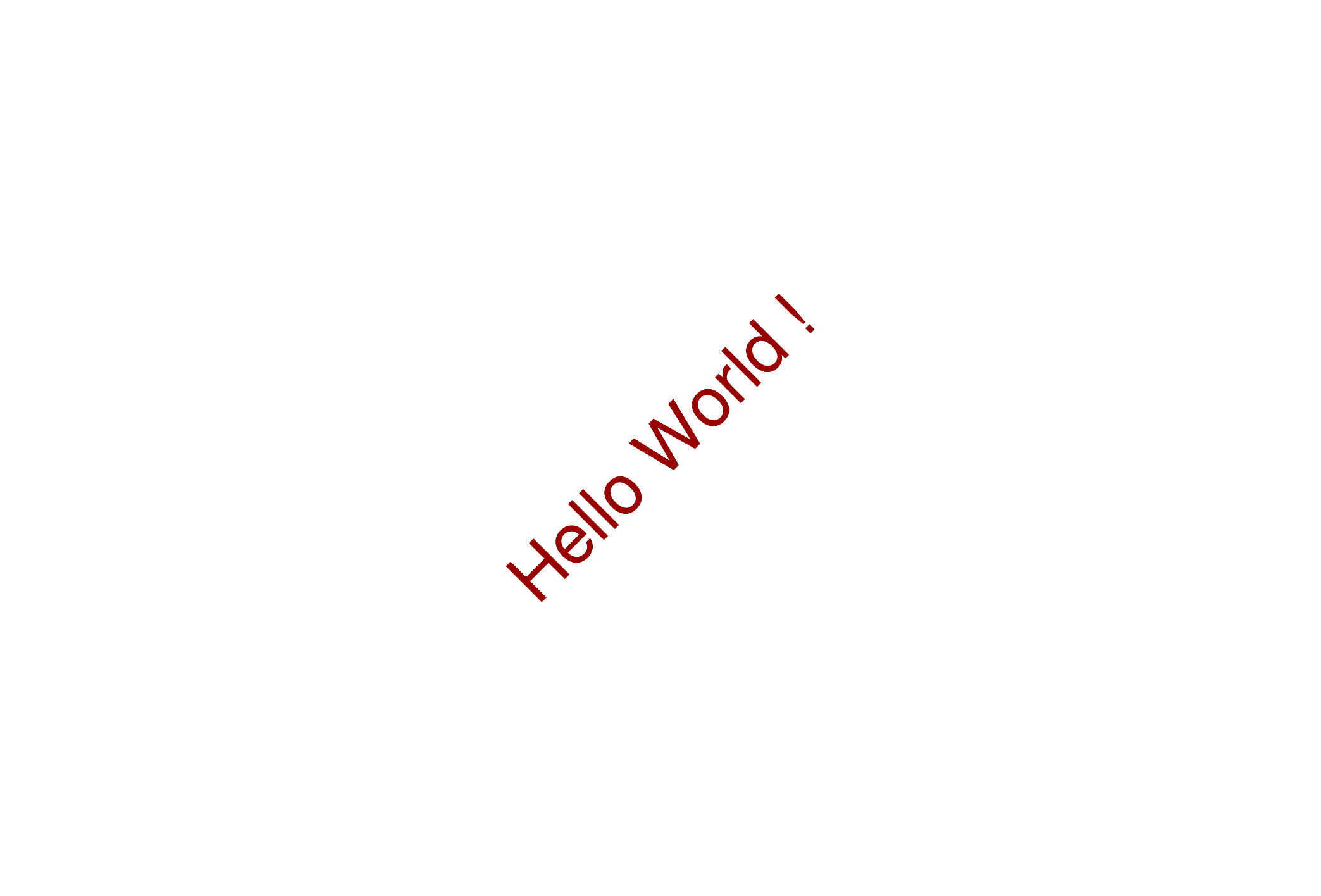

Example:

{
   TText *t = new TText(.5,.5,"Hello World !");
   t->SetTextAlign(22);
   t->SetTextColor(kRed+2);
   t->SetTextFont(43);
   t->SetTextSize(40);
   t->SetTextAngle(45);
   t->Draw();
}

Definition at line 22 of file TText.h.

Public Types
enum	{ kTextNDC = (1ULL << ( 14 )) }

Public Types inherited from TObject
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }

enum	{ kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum	EStatusBits { kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) , kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 )) }

Public Member Functions
	TText ()

	TText (const TText &text)
	Copy constructor.

	TText (Double_t x, Double_t y, const char *text)
	Text normal constructor.

	TText (Double_t x, Double_t y, const wchar_t *text)
	Text normal constructor.

	~TText () override
	Text default destructor.

void	Copy (TObject &text) const override
	Copy this text to text.

Int_t	DistancetoPrimitive (Int_t px, Int_t py) override
	Compute distance from point px,py to a string.

virtual TText *	DrawText (Double_t x, Double_t y, const char *text)
	Draw this text with new coordinates.

virtual TText *	DrawText (Double_t x, Double_t y, const wchar_t *text)
	Draw this text with new coordinates.

virtual TText *	DrawTextNDC (Double_t x, Double_t y, const char *text)
	Draw this text with new coordinates in NDC.

virtual TText *	DrawTextNDC (Double_t x, Double_t y, const wchar_t *text)
	Draw this text with new coordinates in NDC.

void	ExecuteEvent (Int_t event, Int_t px, Int_t py) override
	Execute action corresponding to one event.

Rectangle_t	GetBBox () override
	Return the "bounding Box" of the Box.

TPoint	GetBBoxCenter () override
	Return the point given by Alignment as 'center'.

virtual void	GetBoundingBox (UInt_t &w, UInt_t &h, Bool_t angle=kFALSE)
	Return text size in pixels.

virtual void	GetControlBox (Int_t x, Int_t y, Double_t theta, Int_t cBoxX[4], Int_t cBoxY[4])
	Return the text control box.

virtual void	GetTextAdvance (UInt_t &a, const char *text, const Bool_t kern=kTRUE) const
	Return text advance for string text if kern is true (default) kerning is taken into account.

virtual void	GetTextAscentDescent (UInt_t &a, UInt_t &d, const char *text) const
	Return text ascent and descent for string text.

virtual void	GetTextAscentDescent (UInt_t &a, UInt_t &d, const wchar_t *text) const
	Return text ascent and descent for string text.

virtual void	GetTextExtent (UInt_t &w, UInt_t &h, const char *text) const
	Return text extent for string text.

virtual void	GetTextExtent (UInt_t &w, UInt_t &h, const wchar_t *text) const
	Return text extent for string text.

const void *	GetWcsTitle (void) const
	Returns the text as UNICODE.

Double_t	GetX () const

Double_t	GetY () const

TClass *	IsA () const override

void	ls (Option_t *option="") const override
	List this text with its attributes.

TText &	operator= (const TText &src)
	Assignment operator.

void	Paint (Option_t *option="") override
	Paint this text with its current attributes.

virtual void	PaintControlBox (Int_t x, Int_t y, Double_t theta)
	Paint the text control box.

virtual void	PaintText (Double_t x, Double_t y, const char *text)
	Draw this text with new coordinates.

virtual void	PaintText (Double_t x, Double_t y, const wchar_t *text)
	Draw this text with new coordinates.

virtual void	PaintTextNDC (Double_t u, Double_t v, const char *text)
	Draw this text with new coordinates in NDC.

virtual void	PaintTextNDC (Double_t u, Double_t v, const wchar_t *text)
	Draw this text with new coordinates in NDC.

void	Print (Option_t *option="") const override
	Dump this text with its attributes.

void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save primitive as a C++ statement(s) on output stream out.

void	SetBBoxCenter (const TPoint &p) override
	Set the point given by Alignment as 'center'.

void	SetBBoxCenterX (const Int_t x) override
	Set X coordinate of the point given by Alignment as 'center'.

void	SetBBoxCenterY (const Int_t y) override
	Set Y coordinate of the point given by Alignment as 'center'.

void	SetBBoxX1 (const Int_t) override
	Set left hand side of BoundingBox to a value (resize in x direction on left)

void	SetBBoxX2 (const Int_t) override
	Set right hand side of BoundingBox to a value (resize in x direction on right)

void	SetBBoxY1 (const Int_t) override
	Set top of BoundingBox to a value (resize in y direction on top)

void	SetBBoxY2 (const Int_t) override
	Set bottom of BoundingBox to a value (resize in y direction on bottom)

virtual void	SetMbTitle (const wchar_t *title=L"")
	Change (i.e. set) the title of the TNamed.

virtual void	SetNDC (Bool_t isNDC=kTRUE)
	Set NDC mode on if isNDC = kTRUE, off otherwise.

virtual void	SetText (Double_t x, Double_t y, const char *text)

virtual void	SetText (Double_t x, Double_t y, const wchar_t *text)

virtual void	SetX (Double_t x)

virtual void	SetY (Double_t y)

void	Streamer (TBuffer &) override
	Stream an object of class TText.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TNamed
	TNamed ()

	TNamed (const char name, const char title)

	TNamed (const TNamed &named)
	TNamed copy ctor.

	TNamed (const TString &name, const TString &title)

virtual	~TNamed ()
	TNamed destructor.

void	Clear (Option_t *option="") override
	Set name and title to empty strings ("").

TObject *	Clone (const char *newname="") const override
	Make a clone of an object using the Streamer facility.

Int_t	Compare (const TObject *obj) const override
	Compare two TNamed objects.

virtual void	FillBuffer (char *&buffer)
	Encode TNamed into output buffer.

const char *	GetName () const override
	Returns name of object.

const char *	GetTitle () const override
	Returns title of object.

ULong_t	Hash () const override
	Return hash value for this object.

Bool_t	IsSortable () const override

TNamed &	operator= (const TNamed &rhs)
	TNamed assignment operator.

virtual void	SetName (const char *name)
	Set the name of the TNamed.

virtual void	SetNameTitle (const char name, const char title)
	Set all the TNamed parameters (name and title).

virtual void	SetTitle (const char *title="")
	Set the title of the TNamed.

virtual Int_t	Sizeof () const
	Return size of the TNamed part of the TObject.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()
	TObject constructor.

	TObject (const TObject &object)
	TObject copy ctor.

virtual	~TObject ()
	TObject destructor.

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.

ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char *	ClassName () const
	Returns name of class to which the object belongs.

virtual void	Delete (Option_t *option="")
	Delete this object.

virtual void	Draw (Option_t *option="")
	Default Draw method for all objects.

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: `gROOT->SetSelectedPad(c1)`.

virtual void	Dump () const
	Dump contents of object on stdout.

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.

virtual const char *	GetIconName () const
	Returns mime type name of object.

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).

virtual Option_t *	GetOption () const

virtual UInt_t	GetUniqueID () const
	Return the unique object id.

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.

Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const
	IsDestructed.

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.

void	operator delete (void *ptr)
	Operator delete.

void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.

void	operator delete[] (void *ptr)
	Operator delete [].

void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)
	TObject assignment operator.

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename.

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Public Member Functions inherited from TAttText
	TAttText ()
	AttText default constructor.

	TAttText (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize)
	AttText normal constructor.

virtual	~TAttText ()
	AttText destructor.

void	Copy (TAttText &atttext) const
	Copy this text attributes to a new TAttText.

virtual Short_t	GetTextAlign () const
	Return the text alignment.

virtual Float_t	GetTextAngle () const
	Return the text angle.

virtual Color_t	GetTextColor () const
	Return the text color.

virtual Font_t	GetTextFont () const
	Return the text font.

virtual Float_t	GetTextSize () const
	Return the text size.

virtual Float_t	GetTextSizePercent (Float_t size)
	Return the text in percent of the pad size.

virtual void	Modify ()
	Change current text attributes if necessary.

virtual void	ResetAttText (Option_t *toption="")
	Reset this text attributes to default values.

virtual void	SaveTextAttributes (std::ostream &out, const char *name, Int_t alidef=12, Float_t angdef=0, Int_t coldef=1, Int_t fondef=61, Float_t sizdef=1)
	Save text attributes as C++ statement(s) on output stream out.

virtual void	SetTextAlign (Short_t align=11)
	Set the text alignment.

virtual void	SetTextAngle (Float_t tangle=0)
	Set the text angle.

virtual void	SetTextAttributes ()
	Invoke the DialogCanvas Text attributes.

virtual void	SetTextColor (Color_t tcolor=1)
	Set the text color.

virtual void	SetTextColorAlpha (Color_t tcolor, Float_t talpha)
	Set a transparent text color.

virtual void	SetTextFont (Font_t tfont=62)
	Set the text font.

virtual void	SetTextSize (Float_t tsize=1)
	Set the text size.

virtual void	SetTextSizePixels (Int_t npixels)
	Set the text size in pixel.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TAttBBox2D
virtual	~TAttBBox2D ()

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TNamed
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()
	Return destructor only flag.

static Bool_t	GetObjectStat ()
	Get status of object stat flag.

static void	SetDtorOnly (void *obj)
	Set destructor only flag.

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Static Public Member Functions inherited from TAttText
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TAttBBox2D
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Protected Attributes
void *	fWcsTitle {nullptr}
	!Used by TMathText

Double_t	fX {0}
	X position of text (left,center,etc..)

Double_t	fY {0}
	Y position of text (left,center,etc..)

Protected Attributes inherited from TNamed
TString	fName

TString	fTitle

Protected Attributes inherited from TAttText
Short_t	fTextAlign
	Text alignment.

Float_t	fTextAngle
	Text angle.

Color_t	fTextColor
	Text color.

Font_t	fTextFont
	Text font.

Float_t	fTextSize
	Text size.

Additional Inherited Members
Protected Types inherited from TObject
enum	{ kOnlyPrepStep = (1ULL << ( 3 )) }

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).

void	MakeZombie ()

#include <TText.h>

Inheritance diagram for TText:

[legend]

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
kTextNDC	The text position is in the NDC space.

Definition at line 31 of file TText.h.

Constructor & Destructor Documentation

◆ TText() [1/4]

TText::TText ( )

inline

Definition at line 35 of file TText.h.

◆ TText() [2/4]

TText::TText	(	Double_t	x,
		Double_t	y,
		const char *	text )

Text normal constructor.

Definition at line 61 of file TText.cxx.

◆ TText() [3/4]

TText::TText	(	Double_t	x,
		Double_t	y,
		const wchar_t *	text )

Text normal constructor.

Definition at line 70 of file TText.cxx.

◆ TText() [4/4]

TText::TText ( const TText & text )

Copy constructor.

Definition at line 90 of file TText.cxx.

◆ ~TText()

TText::~TText ( )

override

Text default destructor.

Definition at line 82 of file TText.cxx.

Member Function Documentation

◆ Class()

static TClass * TText::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * TText::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t TText::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 89 of file TText.h.

◆ Copy()

void TText::Copy ( TObject & text ) const

overridevirtual

Copy this text to text.

Reimplemented from TNamed.

Definition at line 107 of file TText.cxx.

◆ DeclFileName()

static const char * TText::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 89 of file TText.h.

◆ DistancetoPrimitive()

Int_t TText::DistancetoPrimitive	(	Int_t	px,
		Int_t	py )

overridevirtual

Compute distance from point px,py to a string.

The rectangle surrounding this string is evaluated. If the point (px,py) is in the rectangle, the distance is set to zero.

Reimplemented from TObject.

Definition at line 144 of file TText.cxx.

◆ DrawText() [1/2]

TText * TText::DrawText	(	Double_t	x,
		Double_t	y,
		const char *	text )

virtual

Draw this text with new coordinates.

Definition at line 176 of file TText.cxx.

◆ DrawText() [2/2]

TText * TText::DrawText	(	Double_t	x,
		Double_t	y,
		const wchar_t *	text )

virtual

Draw this text with new coordinates.

Definition at line 189 of file TText.cxx.

◆ DrawTextNDC() [1/2]

TText * TText::DrawTextNDC	(	Double_t	x,
		Double_t	y,
		const char *	text )

virtual

Draw this text with new coordinates in NDC.

Definition at line 202 of file TText.cxx.

◆ DrawTextNDC() [2/2]

TText * TText::DrawTextNDC	(	Double_t	x,
		Double_t	y,
		const wchar_t *	text )

virtual

Draw this text with new coordinates in NDC.

Definition at line 212 of file TText.cxx.

◆ ExecuteEvent()

void TText::ExecuteEvent	(	Int_t	event,
		Int_t	px,
		Int_t	py )

overridevirtual

Execute action corresponding to one event.

This member function must be implemented to realize the action corresponding to the mouse click on the object in the window

Reimplemented from TObject.

Definition at line 225 of file TText.cxx.

◆ GetBBox()

Rectangle_t TText::GetBBox ( )

overridevirtual

Return the "bounding Box" of the Box.

Implements TAttBBox2D.

Definition at line 873 of file TText.cxx.

◆ GetBBoxCenter()

TPoint TText::GetBBoxCenter ( )

overridevirtual

Return the point given by Alignment as 'center'.

Implements TAttBBox2D.

Definition at line 906 of file TText.cxx.

◆ GetBoundingBox()

void TText::GetBoundingBox	(	UInt_t &	w,
		UInt_t &	h,
		Bool_t	angle = kFALSE )

virtual

Return text size in pixels.

By default the size returned does not take into account the text angle (angle = kFALSE). If angle is set to kTRUE w and h take the angle into account.

Reimplemented in TLatex, and TMathText.

Definition at line 474 of file TText.cxx.

◆ GetControlBox()

void TText::GetControlBox	(	Int_t	x,
		Int_t	y,
		Double_t	theta,
		Int_t	cBoxX[4],
		Int_t	cBoxY[4] )

virtual

Return the text control box.

The text position coordinates is (x,y) and the text angle is theta. The control box coordinates are returned in cBoxX and cBoxY.

Definition at line 424 of file TText.cxx.

◆ GetTextAdvance()

void TText::GetTextAdvance	(	UInt_t &	a,
		const char *	text,
		const Bool_t	kern = kTRUE ) const

virtual

Return text advance for string text if kern is true (default) kerning is taken into account.

If it is false the kerning is not taken into account.

Definition at line 620 of file TText.cxx.

◆ GetTextAscentDescent() [1/2]

void TText::GetTextAscentDescent	(	UInt_t &	a,
		UInt_t &	d,
		const char *	text ) const

virtual

Return text ascent and descent for string text.

in a return total text ascent
in d return text descent

Definition at line 525 of file TText.cxx.

◆ GetTextAscentDescent() [2/2]

void TText::GetTextAscentDescent	(	UInt_t &	a,
		UInt_t &	d,
		const wchar_t *	text ) const

virtual

Return text ascent and descent for string text.

in a return total text ascent
in d return text descent

Definition at line 561 of file TText.cxx.

◆ GetTextExtent() [1/2]

void TText::GetTextExtent	(	UInt_t &	w,
		UInt_t &	h,
		const char *	text ) const

virtual

Return text extent for string text.

in w return total text width
in h return text height

Definition at line 591 of file TText.cxx.

◆ GetTextExtent() [2/2]

void TText::GetTextExtent	(	UInt_t &	w,
		UInt_t &	h,
		const wchar_t *	text ) const

virtual

Return text extent for string text.

in w return total text width
in h return text height

Definition at line 656 of file TText.cxx.

◆ GetWcsTitle()

const void * TText::GetWcsTitle ( void ) const

Returns the text as UNICODE.

Definition at line 130 of file TText.cxx.

◆ GetX()

Double_t TText::GetX ( ) const

inline

Definition at line 53 of file TText.h.

◆ GetY()

Double_t TText::GetY ( ) const

inline

Definition at line 61 of file TText.h.

◆ IsA()

TClass * TText::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TNamed.

Definition at line 89 of file TText.h.

◆ ls()

void TText::ls ( Option_t * option = "" ) const

overridevirtual

List this text with its attributes.

Reimplemented from TNamed.

Definition at line 678 of file TText.cxx.

◆ operator=()

TText & TText::operator= ( const TText & src )

Assignment operator.

Definition at line 98 of file TText.cxx.

◆ Paint()

void TText::Paint ( Option_t * option = "" )

overridevirtual

Paint this text with its current attributes.

Reimplemented from TObject.

Definition at line 687 of file TText.cxx.

◆ PaintControlBox()

void TText::PaintControlBox	(	Int_t	x,
		Int_t	y,
		Double_t	theta )

virtual

Paint the text control box.

(x,y) are the coordinates where the control box should be painted and theta is the angle of the box.

Definition at line 699 of file TText.cxx.

◆ PaintText() [1/2]

void TText::PaintText	(	Double_t	x,
		Double_t	y,
		const char *	text )

virtual

Draw this text with new coordinates.

Definition at line 752 of file TText.cxx.

◆ PaintText() [2/2]

void TText::PaintText	(	Double_t	x,
		Double_t	y,
		const wchar_t *	text )

virtual

Draw this text with new coordinates.

Definition at line 761 of file TText.cxx.

◆ PaintTextNDC() [1/2]

void TText::PaintTextNDC	(	Double_t	u,
		Double_t	v,
		const char *	text )

virtual

Draw this text with new coordinates in NDC.

Definition at line 770 of file TText.cxx.

◆ PaintTextNDC() [2/2]

void TText::PaintTextNDC	(	Double_t	u,
		Double_t	v,
		const wchar_t *	text )

virtual

Draw this text with new coordinates in NDC.

Definition at line 779 of file TText.cxx.

◆ Print()

void TText::Print ( Option_t * option = "" ) const

overridevirtual

Dump this text with its attributes.

Reimplemented from TNamed.

Definition at line 788 of file TText.cxx.

◆ SavePrimitive()

void TText::SavePrimitive	(	std::ostream &	out,
		Option_t *	option = "" )

overridevirtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TObject.

Definition at line 800 of file TText.cxx.

◆ SetBBoxCenter()

void TText::SetBBoxCenter ( const TPoint & p )

overridevirtual

Set the point given by Alignment as 'center'.

Implements TAttBBox2D.

Definition at line 918 of file TText.cxx.

◆ SetBBoxCenterX()

void TText::SetBBoxCenterX ( const Int_t x )

overridevirtual

Set X coordinate of the point given by Alignment as 'center'.

Implements TAttBBox2D.

Definition at line 928 of file TText.cxx.

◆ SetBBoxCenterY()

void TText::SetBBoxCenterY ( const Int_t y )

overridevirtual

Set Y coordinate of the point given by Alignment as 'center'.

Implements TAttBBox2D.

Definition at line 937 of file TText.cxx.

◆ SetBBoxX1()

void TText::SetBBoxX1 ( const Int_t )

overridevirtual

Set left hand side of BoundingBox to a value (resize in x direction on left)

Implements TAttBBox2D.

Definition at line 947 of file TText.cxx.

◆ SetBBoxX2()

void TText::SetBBoxX2 ( const Int_t )

overridevirtual

Set right hand side of BoundingBox to a value (resize in x direction on right)

Implements TAttBBox2D.

Definition at line 956 of file TText.cxx.

◆ SetBBoxY1()

void TText::SetBBoxY1 ( const Int_t )

overridevirtual

Set top of BoundingBox to a value (resize in y direction on top)

Implements TAttBBox2D.

Definition at line 964 of file TText.cxx.

◆ SetBBoxY2()

void TText::SetBBoxY2 ( const Int_t )

overridevirtual

Set bottom of BoundingBox to a value (resize in y direction on bottom)

Implements TAttBBox2D.

Definition at line 973 of file TText.cxx.

◆ SetMbTitle()

void TText::SetMbTitle ( const wchar_t * title = L"" )

virtual

Change (i.e. set) the title of the TNamed.

Definition at line 832 of file TText.cxx.

◆ SetNDC()

void TText::SetNDC ( Bool_t isNDC = kTRUE )

virtual

Set NDC mode on if isNDC = kTRUE, off otherwise.

Definition at line 823 of file TText.cxx.

◆ SetText() [1/2]

virtual void TText::SetText	(	Double_t	x,
		Double_t	y,
		const char *	text )

inlinevirtual

Definition at line 74 of file TText.h.

◆ SetText() [2/2]

virtual void TText::SetText	(	Double_t	x,
		Double_t	y,
		const wchar_t *	text )

inlinevirtual

Definition at line 75 of file TText.h.

◆ SetX()

virtual void TText::SetX ( Double_t x )

inlinevirtual

Definition at line 76 of file TText.h.

◆ SetY()

virtual void TText::SetY ( Double_t y )

inlinevirtual

Definition at line 77 of file TText.h.

◆ Streamer()

void TText::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TText.

Reimplemented from TNamed.

Definition at line 849 of file TText.cxx.

◆ StreamerNVirtual()

void TText::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 89 of file TText.h.

Member Data Documentation

◆ fWcsTitle

void* TText::fWcsTitle {nullptr}

protected

!Used by TMathText

Definition at line 27 of file TText.h.

◆ fX

Double_t TText::fX {0}

protected

X position of text (left,center,etc..)

Definition at line 25 of file TText.h.

◆ fY

Double_t TText::fY {0}

protected

Y position of text (left,center,etc..)

Definition at line 26 of file TText.h.

Libraries for TText:

[legend]

The documentation for this class was generated from the following files:

graf2d/graf/inc/TText.h
graf2d/graf/src/TText.cxx

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ TText() [1/4]

◆ TText() [2/4]

◆ TText() [3/4]

◆ TText() [4/4]

◆ ~TText()

Member Function Documentation

◆ Class()

◆ Class_Name()

◆ Class_Version()

◆ Copy()

◆ DeclFileName()

◆ DistancetoPrimitive()

◆ DrawText() [1/2]

◆ DrawText() [2/2]

◆ DrawTextNDC() [1/2]

◆ DrawTextNDC() [2/2]

◆ ExecuteEvent()

◆ GetBBox()

◆ GetBBoxCenter()

◆ GetBoundingBox()

◆ GetControlBox()

◆ GetTextAdvance()

◆ GetTextAscentDescent() [1/2]

◆ GetTextAscentDescent() [2/2]

◆ GetTextExtent() [1/2]

◆ GetTextExtent() [2/2]

◆ GetWcsTitle()

◆ GetX()

◆ GetY()

◆ IsA()

◆ ls()

◆ operator=()

◆ Paint()

◆ PaintControlBox()

◆ PaintText() [1/2]

◆ PaintText() [2/2]

◆ PaintTextNDC() [1/2]

◆ PaintTextNDC() [2/2]

◆ Print()

◆ SavePrimitive()

◆ SetBBoxCenter()

◆ SetBBoxCenterX()

◆ SetBBoxCenterY()

◆ SetBBoxX1()

◆ SetBBoxX2()

◆ SetBBoxY1()

◆ SetBBoxY2()

◆ SetMbTitle()

◆ SetNDC()

◆ SetText() [1/2]

◆ SetText() [2/2]

◆ SetX()

◆ SetY()

◆ Streamer()

◆ StreamerNVirtual()

Member Data Documentation

◆ fWcsTitle

◆ fX

◆ fY
