#include <RooStats/HistFactory/MakeModelAndMeasurementsFast.h>

#include <RooStats/HistFactory/Measurement.h>


#include <TFile.h>

#include <TROOT.h>


void hf001_example()

{

   std::string InputFile = "./data/example.root";

   // in case the file is not found

   bool bfile = gSystem->AccessPathName(InputFile.c_str());

   if (bfile) {

      std::cout << "Input file is not found - run prepareHistFactory script " << std::endl;

      gROOT->ProcessLine(".! prepareHistFactory .");

      bfile = gSystem->AccessPathName(InputFile.c_str());

      if (bfile) {

         std::cout << "Still no " << InputFile << ", giving up.\n";

         exit(1);

      }

   }


   // Create the measurement

   RooStats::HistFactory::Measurement meas("meas", "meas");


   meas.SetOutputFilePrefix("./results/example_UsingC");

   meas.SetPOI("SigXsecOverSM");

   meas.AddConstantParam("alpha_syst1");

   meas.AddConstantParam("Lumi");


   meas.SetLumi(1.0);

   meas.SetLumiRelErr(0.10);

   meas.SetBinHigh(2);


   // Create a channel


   RooStats::HistFactory::Channel chan("channel1");

   chan.SetData("data", InputFile);

   chan.SetStatErrorConfig(0.05, "Poisson");


   // Now, create some samples


   // Create the signal sample

   RooStats::HistFactory::Sample signal("signal", "signal", InputFile);

   signal.AddOverallSys("syst1", 0.95, 1.05);

   signal.AddNormFactor("SigXsecOverSM", 1, 0, 3);

   chan.AddSample(signal);


   // Background 1

   RooStats::HistFactory::Sample background1("background1", "background1", InputFile);

   background1.ActivateStatError("background1_statUncert", InputFile);

   background1.AddOverallSys("syst2", 0.95, 1.05);

   chan.AddSample(background1);


   // Background 1

   RooStats::HistFactory::Sample background2("background2", "background2", InputFile);

   background2.ActivateStatError();

   background2.AddOverallSys("syst3", 0.95, 1.05);

   chan.AddSample(background2);


   // Done with this channel

   // Add it to the measurement:

   meas.AddChannel(chan);


   // Collect the histograms from their files,

   // print some output,

   meas.CollectHistograms();

   meas.PrintTree();


   // One can print XML code to an output directory:

   // meas.PrintXML( "xmlFromCCode", meas.GetOutputFilePrefix() );


   // Now, do the measurement

   std::unique_ptr<RooWorkspace> ws{MakeModelAndMeasurementFast(meas)};


   RooStats::ModelConfig *modelConfig = static_cast<RooStats::ModelConfig *>(ws->obj("ModelConfig"));


   // Get probability density function and parameters list from model

   RooAbsPdf *pdf = modelConfig->GetPdf();

   RooArgSet globalObservables{*modelConfig->GetGlobalObservables()};


   // Perform the fit using Minos to get the correct asymmetric uncertainties

   using namespace RooFit;

   std::unique_ptr<RooFitResult> result{

      pdf->fitTo(*ws->data("obsData"), Save(), PrintLevel(-1), GlobalObservables(globalObservables), Minos(true))};


   // Getting list of Parameters of Interest and getting first from them

   RooRealVar *poi = static_cast<RooRealVar *>(modelConfig->GetParametersOfInterest()->first());


   std::unique_ptr<RooAbsReal> nll{pdf->createNLL(*ws->data("obsData"))};

   std::unique_ptr<RooAbsReal> profile{nll->createProfile(*poi)};

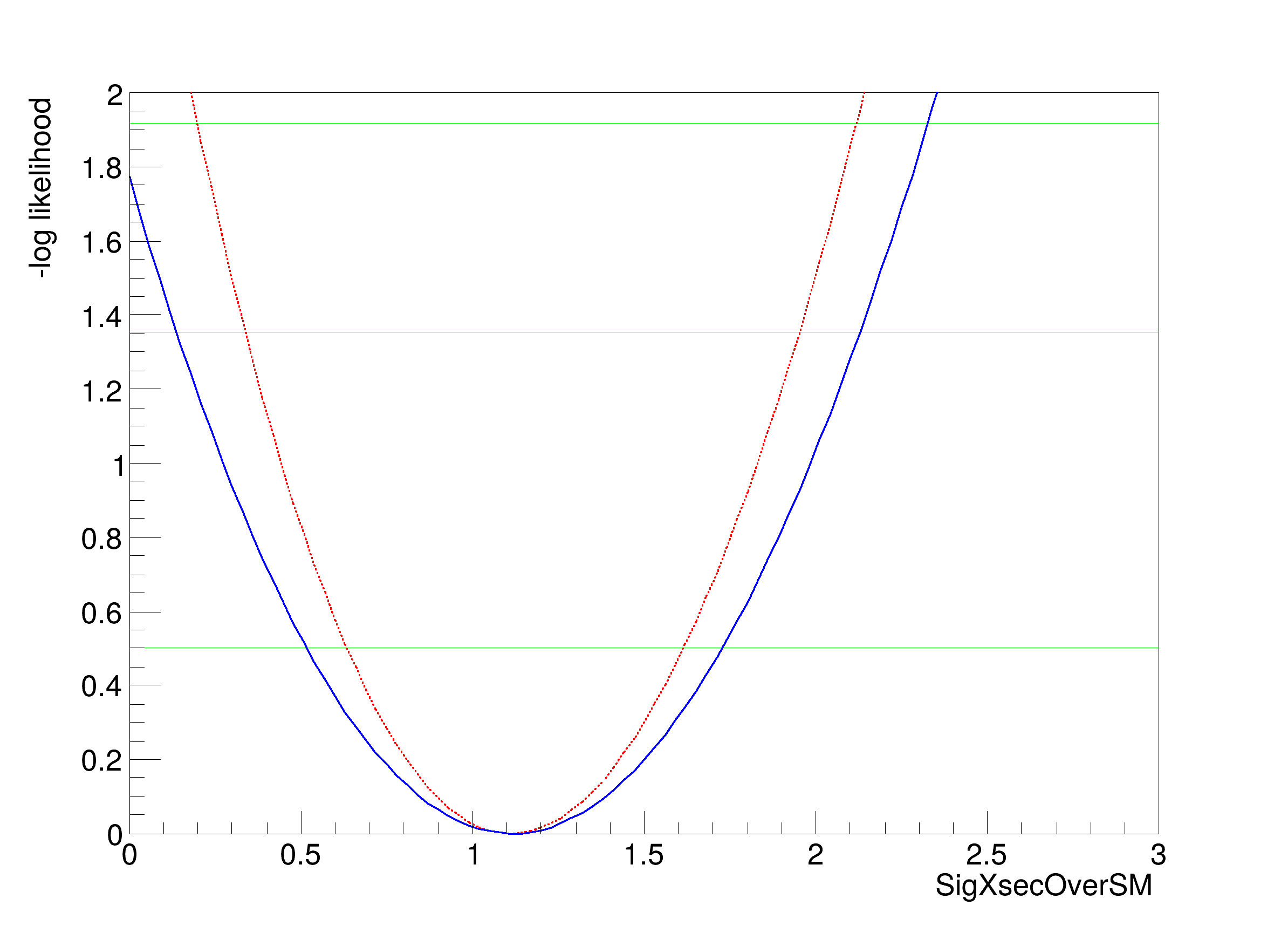

   // frame for future plot

   RooPlot *frame = poi->frame();


   frame->SetTitle("");

   frame->GetYaxis()->SetTitle("-log likelihood");

   frame->GetXaxis()->SetTitle(poi->GetTitle());


   TCanvas *profileLikelihoodCanvas = new TCanvas{"combined", "", 800, 600};


   double xmin = poi->getMin();

   double xmax = poi->getMax();

   TLine *line = new TLine(xmin, .5, xmax, .5);

   line->SetLineColor(kGreen);

   TLine *line90 = new TLine(xmin, 2.71 / 2., xmax, 2.71 / 2.);

   line90->SetLineColor(kGreen);

   TLine *line95 = new TLine(xmin, 3.84 / 2., xmax, 3.84 / 2.);

   line95->SetLineColor(kGreen);

   frame->addObject(line);

   frame->addObject(line90);

   frame->addObject(line95);


   nll->plotOn(frame, ShiftToZero(), LineColor(kRed), LineStyle(kDashed));

   profile->plotOn(frame);


   frame->SetMinimum(0);

   frame->SetMaximum(2.);


   frame->Draw();


   // Print fit results to console in verbose mode to see asymmetric uncertainties

   result->Print("v");

}
