Spider class.

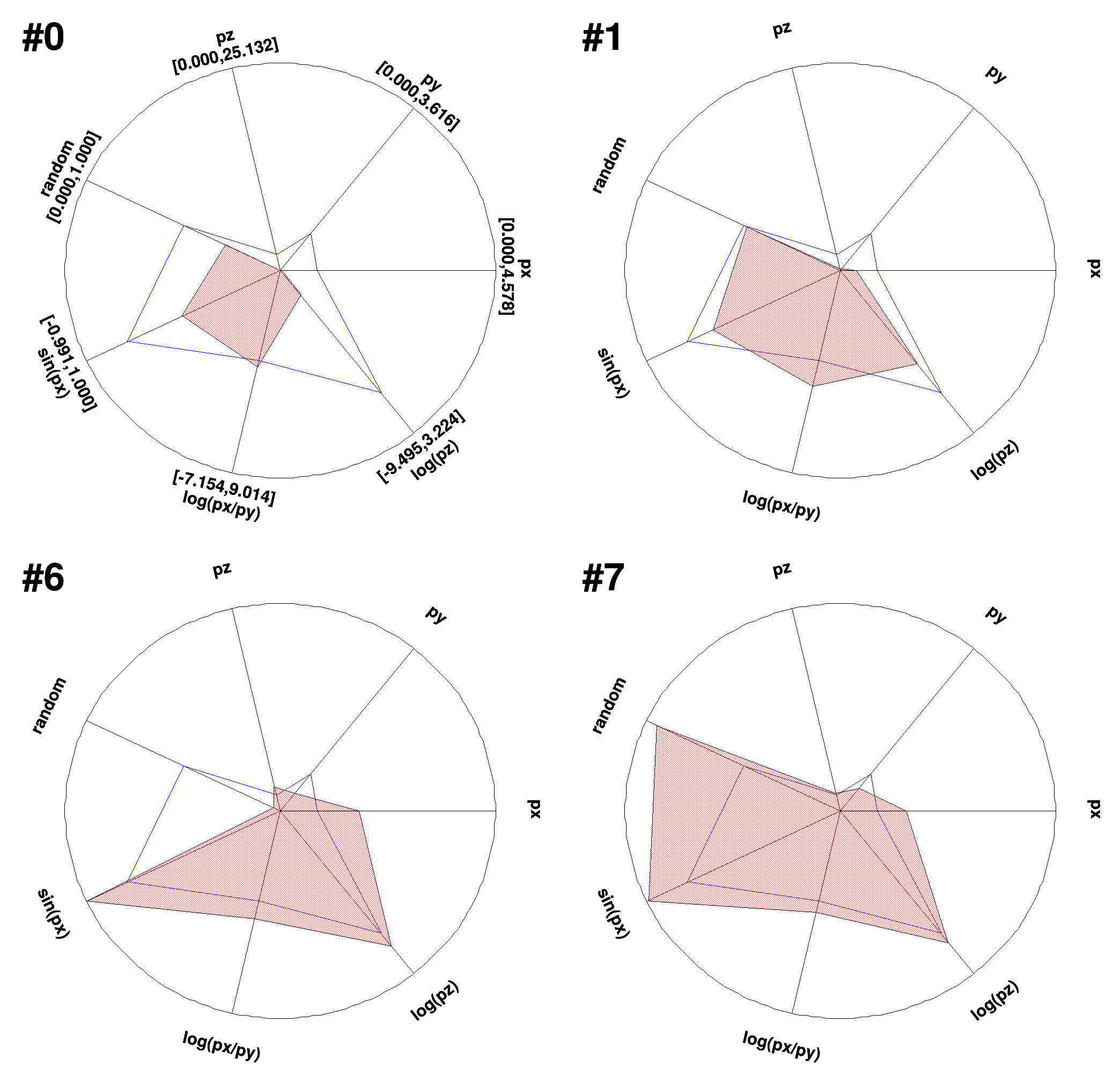

A spider view is a handy way to visualize a set of data stored in a TTree. It draws as many polar axes as selected data members. For each of them, it draws on the axis the position of the present event between the min and max of the data member. Two modes are available:
- The spider view: With each points on the axes is drawn a polyline.
- The segment view: For each data member is drawn an arc segment with the radius corresponding to the event.
The spider plot is available from the treeviewer called by "atree->StartViewer()", or simply by calling its constructor and defining the variables to display.
{
TFile *
f =
new TFile(
"$(ROOTSYS)/tutorials/hsimple.root");
if (!
f ||
f->IsZombie()) {
printf(
"Please run <ROOT location>/tutorials/hsimple.C before.");
return;
}
}
ROOT::Detail::TRangeCast< T, true > TRangeDynCast
TRangeDynCast is an adapter class that allows the typed iteration through a TCollection.
A ROOT file is an on-disk file, usually with extension .root, that stores objects in a file-system-li...
A simple TTree restricted to a list of float variables only.
const char * Data() const
Definition at line 40 of file TSpider.h.
|
| | TSpider () |
| | Default constructor.
|
| |
| | TSpider (TTree *tree, const char *varexp, const char *selection, Option_t *option="", Long64_t nentries=0, Long64_t firstentry=0) |
| | Normal constructor.
|
| |
| | ~TSpider () override |
| | Destructor.
|
| |
| void | AddSuperposed (TSpider *sp) |
| | Allow to superpose several spider views.
|
| |
| void | AddVariable (const char *varexp) |
| | Add a variable to the plot from its expression.
|
| |
| void | DeleteVariable (const char *varexp) |
| | Delete a variable from its expression.
|
| |
| Int_t | DistancetoPrimitive (Int_t px, Int_t py) override |
| | Compute the distance to the spider.
|
| |
| void | Draw (Option_t *options="") override |
| | Draw the spider.
|
| |
| void | ExecuteEvent (Int_t event, Int_t px, Int_t py) override |
| | Execute the corresponding event.
|
| |
| Color_t | GetAverageFillColor () const |
| | Get the Fill Color of the average.
|
| |
| Style_t | GetAverageFillStyle () const |
| | Get the FillStyle of the average.
|
| |
| Color_t | GetAverageLineColor () const |
| | Get the LineColor of the average.
|
| |
| Style_t | GetAverageLineStyle () const |
| | Get the LineStyle of the average.
|
| |
| Width_t | GetAverageLineWidth () const |
| | Get the LineWidth of the average.
|
| |
| Long64_t | GetCurrentEntry () const |
| |
| bool | GetDisplayAverage () const |
| |
| Long64_t | GetEntriesToProcess (Long64_t firstentry, Long64_t nentries) const |
| | return the number of entries to be processed this function checks that nentries is not bigger than the number of entries in the Tree or in the associated TEventlist
|
| |
| Int_t | GetNx () const |
| |
| Int_t | GetNy () const |
| |
| bool | GetSegmentDisplay () const |
| |
| void | GotoEntry (Long64_t e) |
| | Go to a specified entry.
|
| |
| void | GotoFollowing () |
| | Go to the next entry.
|
| |
| void | GotoNext () |
| | Go to the next entries.
|
| |
| void | GotoPreceding () |
| | Go to the last entry.
|
| |
| void | GotoPrevious () |
| | Go to the previous entries.
|
| |
| TClass * | IsA () const override |
| |
| void | Paint (Option_t *options) override |
| | Paint the spider.
|
| |
| void | SetAverageFillColor (Color_t col) |
| | Set the Fill Color of the average.
|
| |
| void | SetAverageFillStyle (Style_t sty) |
| | Set the FillStyle of the average.
|
| |
| void | SetAverageLineColor (Color_t col) |
| | Set the LineColor of the average.
|
| |
| void | SetAverageLineStyle (Style_t sty) |
| | Set the LineStyle of the average.
|
| |
| void | SetAverageLineWidth (Width_t wid) |
| | Set the LineWidth of the average.
|
| |
| void | SetDisplayAverage (bool disp) |
| | Display or not the average.
|
| |
| void | SetFillColor (Color_t col) override |
| | Set fill color.
|
| |
| void | SetFillStyle (Style_t sty) override |
| | Set fill style.
|
| |
| void | SetLineColor (Color_t col) override |
| | Set lin color.
|
| |
| void | SetLineStyle (Style_t sty) override |
| | Set line style.
|
| |
| void | SetLineWidth (Width_t wid) override |
| | Set line width.
|
| |
| void | SetNdivRadial (Int_t div) |
| | Set number of radial divisions.
|
| |
| void | SetNx (UInt_t nx) |
| | Set the X number of sub pads.
|
| |
| void | SetNy (UInt_t ny) |
| | Set the Y number of sub pads.
|
| |
| void | SetSegmentDisplay (bool seg) |
| | Set the segment display or not.
|
| |
| void | SetSelectionExpression (const char *selexp) |
| | Compile selection expression if there is one.
|
| |
| void | SetShowRange (bool showrange) |
| |
| void | SetVariablesExpression (const char *varexp) |
| | Compile the variables expression from the given string varexp.
|
| |
| void | Streamer (TBuffer &) override |
| | Stream an object of class TObject.
|
| |
| void | StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b) |
| |
| void | SuperposeTo (TSpider *sp) |
| |
| | TObject () |
| | TObject constructor.
|
| |
| | TObject (const TObject &object) |
| | TObject copy ctor.
|
| |
| virtual | ~TObject () |
| | TObject destructor.
|
| |
| void | AbstractMethod (const char *method) const |
| | Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.
|
| |
| virtual void | AppendPad (Option_t *option="") |
| | Append graphics object to current pad.
|
| |
| virtual void | Browse (TBrowser *b) |
| | Browse object. May be overridden for another default action.
|
| |
| ULong_t | CheckedHash () |
| | Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.
|
| |
| virtual const char * | ClassName () const |
| | Returns name of class to which the object belongs.
|
| |
| virtual void | Clear (Option_t *="") |
| |
| virtual TObject * | Clone (const char *newname="") const |
| | Make a clone of an object using the Streamer facility.
|
| |
| virtual Int_t | Compare (const TObject *obj) const |
| | Compare abstract method.
|
| |
| virtual void | Copy (TObject &object) const |
| | Copy this to obj.
|
| |
| virtual void | Delete (Option_t *option="") |
| | Delete this object.
|
| |
| virtual void | DrawClass () const |
| | Draw class inheritance tree of the class to which this object belongs.
|
| |
| virtual TObject * | DrawClone (Option_t *option="") const |
| | Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
|
| |
| virtual void | Dump () const |
| | Dump contents of object on stdout.
|
| |
| virtual void | Error (const char *method, const char *msgfmt,...) const |
| | Issue error message.
|
| |
| virtual void | Execute (const char *method, const char *params, Int_t *error=nullptr) |
| | Execute method on this object with the given parameter string, e.g.
|
| |
| virtual void | Execute (TMethod *method, TObjArray *params, Int_t *error=nullptr) |
| | Execute method on this object with parameters stored in the TObjArray.
|
| |
| virtual void | Fatal (const char *method, const char *msgfmt,...) const |
| | Issue fatal error message.
|
| |
| virtual TObject * | FindObject (const char *name) const |
| | Must be redefined in derived classes.
|
| |
| virtual TObject * | FindObject (const TObject *obj) const |
| | Must be redefined in derived classes.
|
| |
| virtual Option_t * | GetDrawOption () const |
| | Get option used by the graphics system to draw this object.
|
| |
| virtual const char * | GetIconName () const |
| | Returns mime type name of object.
|
| |
| virtual const char * | GetName () const |
| | Returns name of object.
|
| |
| virtual char * | GetObjectInfo (Int_t px, Int_t py) const |
| | Returns string containing info about the object at position (px,py).
|
| |
| virtual Option_t * | GetOption () const |
| |
| virtual const char * | GetTitle () const |
| | Returns title of object.
|
| |
| virtual UInt_t | GetUniqueID () const |
| | Return the unique object id.
|
| |
| virtual Bool_t | HandleTimer (TTimer *timer) |
| | Execute action in response of a timer timing out.
|
| |
| virtual ULong_t | Hash () const |
| | Return hash value for this object.
|
| |
| Bool_t | HasInconsistentHash () const |
| | Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.
|
| |
| virtual void | Info (const char *method, const char *msgfmt,...) const |
| | Issue info message.
|
| |
| virtual Bool_t | InheritsFrom (const char *classname) const |
| | Returns kTRUE if object inherits from class "classname".
|
| |
| virtual Bool_t | InheritsFrom (const TClass *cl) const |
| | Returns kTRUE if object inherits from TClass cl.
|
| |
| virtual void | Inspect () const |
| | Dump contents of this object in a graphics canvas.
|
| |
| void | InvertBit (UInt_t f) |
| |
| Bool_t | IsDestructed () const |
| | IsDestructed.
|
| |
| virtual Bool_t | IsEqual (const TObject *obj) const |
| | Default equal comparison (objects are equal if they have the same address in memory).
|
| |
| virtual Bool_t | IsFolder () const |
| | Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).
|
| |
| R__ALWAYS_INLINE Bool_t | IsOnHeap () const |
| |
| virtual Bool_t | IsSortable () const |
| |
| R__ALWAYS_INLINE Bool_t | IsZombie () const |
| |
| virtual void | ls (Option_t *option="") const |
| | The ls function lists the contents of a class on stdout.
|
| |
| void | MayNotUse (const char *method) const |
| | Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).
|
| |
| virtual Bool_t | Notify () |
| | This method must be overridden to handle object notification (the base implementation is no-op).
|
| |
| void | Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const |
| | Use this method to declare a method obsolete.
|
| |
| void | operator delete (void *ptr) |
| | Operator delete.
|
| |
| void | operator delete (void *ptr, void *vp) |
| | Only called by placement new when throwing an exception.
|
| |
| void | operator delete[] (void *ptr) |
| | Operator delete [].
|
| |
| void | operator delete[] (void *ptr, void *vp) |
| | Only called by placement new[] when throwing an exception.
|
| |
| void * | operator new (size_t sz) |
| |
| void * | operator new (size_t sz, void *vp) |
| |
| void * | operator new[] (size_t sz) |
| |
| void * | operator new[] (size_t sz, void *vp) |
| |
| TObject & | operator= (const TObject &rhs) |
| | TObject assignment operator.
|
| |
| virtual void | Pop () |
| | Pop on object drawn in a pad to the top of the display list.
|
| |
| virtual void | Print (Option_t *option="") const |
| | This method must be overridden when a class wants to print itself.
|
| |
| virtual Int_t | Read (const char *name) |
| | Read contents of object with specified name from the current directory.
|
| |
| virtual void | RecursiveRemove (TObject *obj) |
| | Recursively remove this object from a list.
|
| |
| void | ResetBit (UInt_t f) |
| |
| virtual void | SaveAs (const char *filename="", Option_t *option="") const |
| | Save this object in the file specified by filename.
|
| |
| virtual void | SavePrimitive (std::ostream &out, Option_t *option="") |
| | Save a primitive as a C++ statement(s) on output stream "out".
|
| |
| void | SetBit (UInt_t f) |
| |
| void | SetBit (UInt_t f, Bool_t set) |
| | Set or unset the user status bits as specified in f.
|
| |
| virtual void | SetDrawOption (Option_t *option="") |
| | Set drawing option for object.
|
| |
| virtual void | SetUniqueID (UInt_t uid) |
| | Set the unique object id.
|
| |
| void | StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b) |
| |
| virtual void | SysError (const char *method, const char *msgfmt,...) const |
| | Issue system error message.
|
| |
| R__ALWAYS_INLINE Bool_t | TestBit (UInt_t f) const |
| |
| Int_t | TestBits (UInt_t f) const |
| |
| virtual void | UseCurrentStyle () |
| | Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.
|
| |
| virtual void | Warning (const char *method, const char *msgfmt,...) const |
| | Issue warning message.
|
| |
| virtual Int_t | Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) |
| | Write this object to the current directory.
|
| |
| virtual Int_t | Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const |
| | Write this object to the current directory.
|
| |
| | TAttFill () |
| | AttFill default constructor.
|
| |
| | TAttFill (Color_t fcolor, Style_t fstyle) |
| | AttFill normal constructor.
|
| |
| virtual | ~TAttFill () |
| | AttFill destructor.
|
| |
| void | Copy (TAttFill &attfill) const |
| | Copy this fill attributes to a new TAttFill.
|
| |
| virtual Color_t | GetFillColor () const |
| | Return the fill area color.
|
| |
| virtual Style_t | GetFillStyle () const |
| | Return the fill area style.
|
| |
| virtual Bool_t | IsTransparent () const |
| |
| virtual void | Modify () |
| | Change current fill area attributes if necessary.
|
| |
| virtual void | ResetAttFill (Option_t *option="") |
| | Reset this fill attributes to default values.
|
| |
| virtual void | SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001) |
| | Save fill attributes as C++ statement(s) on output stream out.
|
| |
| virtual void | SetFillAttributes () |
| | Invoke the DialogCanvas Fill attributes.
|
| |
| void | SetFillColor (TColorNumber) |
| |
| virtual void | SetFillColorAlpha (Color_t fcolor, Float_t falpha) |
| | Set a transparent fill color.
|
| |
| void | StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b) |
| |
| | TAttLine () |
| | AttLine default constructor.
|
| |
| | TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth) |
| | AttLine normal constructor.
|
| |
| virtual | ~TAttLine () |
| | AttLine destructor.
|
| |
| void | Copy (TAttLine &attline) const |
| | Copy this line attributes to a new TAttLine.
|
| |
| Int_t | DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2) |
| | Compute distance from point px,py to a line.
|
| |
| virtual Color_t | GetLineColor () const |
| | Return the line color.
|
| |
| virtual Style_t | GetLineStyle () const |
| | Return the line style.
|
| |
| virtual Width_t | GetLineWidth () const |
| | Return the line width.
|
| |
| virtual void | Modify () |
| | Change current line attributes if necessary.
|
| |
| virtual void | ResetAttLine (Option_t *option="") |
| | Reset this line attributes to default values.
|
| |
| virtual void | SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1) |
| | Save line attributes as C++ statement(s) on output stream out.
|
| |
| virtual void | SetLineAttributes () |
| | Invoke the DialogCanvas Line attributes.
|
| |
| void | SetLineColor (TColorNumber lcolor) |
| |
| virtual void | SetLineColorAlpha (Color_t lcolor, Float_t lalpha) |
| | Set a transparent line color.
|
| |
| void | StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b) |
| |
Public Member Functions inherited from TObject
