track.C File Reference

Detailed Description

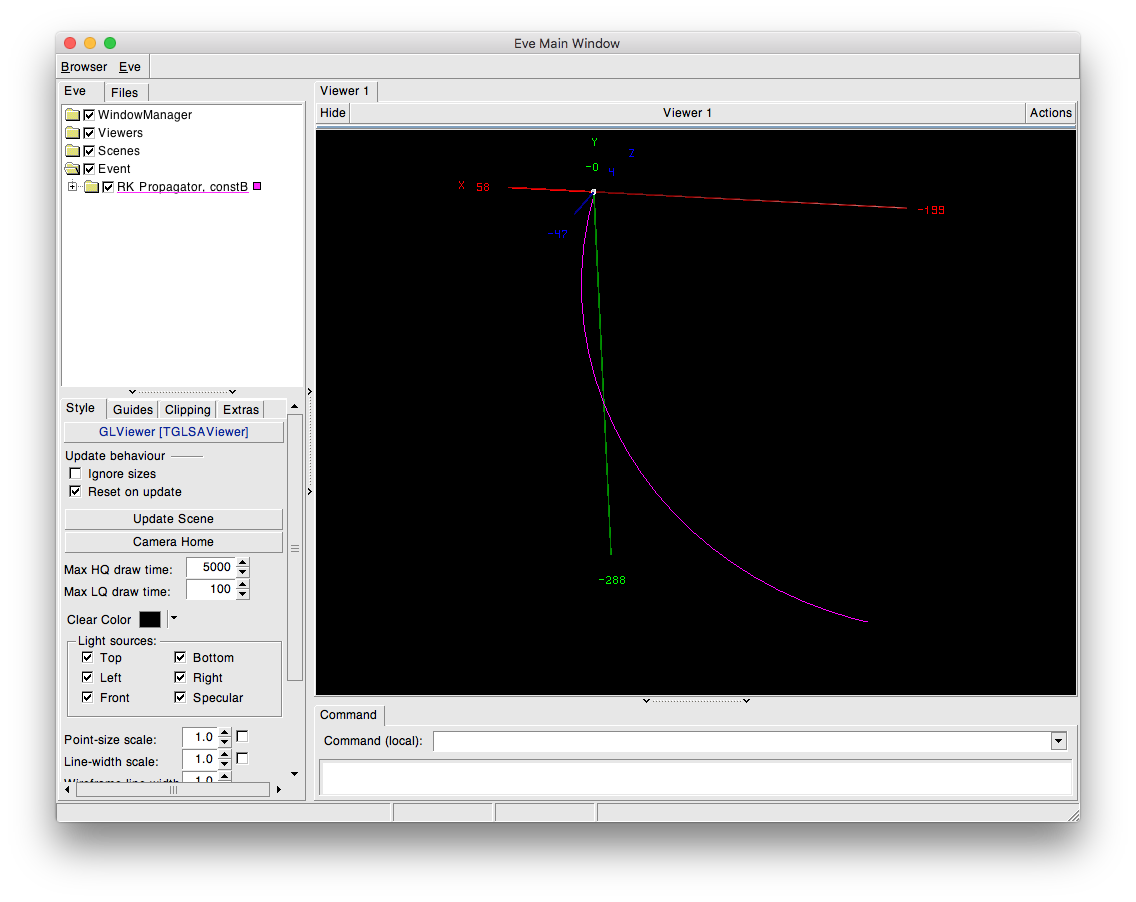

Demonstrates usage of TEveTrackPRopagator with different magnetic field configurations.

Needs to be run in compiled mode. root

.L track.C+
track(3, kTRUE)

void track(Int_t mode = 5, Bool_t isRungeKutta = kTRUE) Modes are 0. B = 0, no difference between signed and charge particles;

1. constant B field (along z, but could have arbitrary direction);
2. variable B field, sign change at R = 200 cm;
3. magnetic field with a zero-field region;
4. CMS magnetic field - simple track;
5. CMS magnetic field - track with different path-marks.
6. Conceptual ILC detector, problematic track


#include "TEveTrackPropagator.h"
#include "TEveTrack.h"
#include "TEveVSDStructs.h"
#include "TEveManager.h"
#include "TEveViewer.h"
#include "TSystem.h"
#include "TGLViewer.h"
#include "TMath.h"

#include "TEveViewer.h"
#include "TEvePointSet.h"

#include <iostream>

TEveTrackPropagator *g_prop = nullptr;

class GappedField : public TEveMagField {
public:
   GappedField() : TEveMagField() {}
   ~GappedField() override{};

   virtual Double_t GetMaxFieldMagD() { return 4; }

   TEveVectorD GetFieldD(Double_t /*x*/, Double_t /*y*/, Double_t z) const override
   {
      if (TMath::Abs(z) < 300)
         return TEveVectorD(0, 0, -4);
      if (TMath::Abs(z) < 600)
         return TEveVectorD(0, 0, 0);
      return TEveVectorD(0, 0, 4);
   }
};

//==============================================================================

class CmsMagField : public TEveMagField {
   bool m_magnetIsOn;
   bool m_reverse;
   bool m_simpleModel;

public:
   CmsMagField() : m_magnetIsOn(true), m_reverse(false), m_simpleModel(true) {}

   ~CmsMagField() override {}

   void setMagnetState(bool state)
   {
      if (state != m_magnetIsOn) {
         if (state)
            std::cout << "Magnet state is changed to ON" << std::endl;
         else
            std::cout << "Magnet state is changed to OFF" << std::endl;
      }
      m_magnetIsOn = state;
   }

   bool isMagnetOn() const { return m_magnetIsOn; }
   void setReverseState(bool state) { m_reverse = state; }
   bool isReverse() const { return m_reverse; }
   void setSimpleModel(bool simpleModel) { m_simpleModel = simpleModel; }
   bool isSimpleModel() const { return m_simpleModel; }

   Double_t GetMaxFieldMagD() const override { return m_magnetIsOn ? 3.8 : 0.0; }

   TEveVectorD GetFieldD(Double_t x, Double_t y, Double_t z) const override
   {
      double R = sqrt(x * x + y * y);
      double field = m_reverse ? -GetMaxFieldMagD() : GetMaxFieldMagD();
      // barrel
      if (TMath::Abs(z) < 724) {
         // inside solenoid
         if (R < 300)
            return TEveVectorD(0, 0, field);
         // outside solenoid
         if (m_simpleModel || (R > 461.0 && R < 490.5) || (R > 534.5 && R < 597.5) || (R > 637.0 && R < 700.0))
            return TEveVectorD(0, 0, -field / 3.8 * 1.2);

      } else {
         // endcaps
         if (m_simpleModel) {
            if (R < 50)
               return TEveVectorD(0, 0, field);
            if (z > 0)
               return TEveVectorD(x / R * field / 3.8 * 2.0, y / R * field / 3.8 * 2.0, 0);
            else
               return TEveVectorD(-x / R * field / 3.8 * 2.0, -y / R * field / 3.8 * 2.0, 0);
         }
         // proper model
         if ((TMath::Abs(z) > 724 && TMath::Abs(z) < 786) || (TMath::Abs(z) > 850 && TMath::Abs(z) < 910) ||
             (TMath::Abs(z) > 975 && TMath::Abs(z) < 1003)) {
            if (z > 0)
               return TEveVectorD(x / R * field / 3.8 * 2.0, y / R * field / 3.8 * 2.0, 0);
            else
               return TEveVectorD(-x / R * field / 3.8 * 2.0, -y / R * field / 3.8 * 2.0, 0);
         }
      }
      return TEveVectorD(0, 0, 0);
   }
};

//==============================================================================
//==============================================================================

//______________________________________________________________________________
TEveTrack *make_track(TEveTrackPropagator *prop, Int_t sign)
{
   // Make track with given propagator.
   // Add to math-marks to test fit.

   auto rc = new TEveRecTrackD();
   rc->fV.Set(0.028558, -0.000918, 3.691919);
   rc->fP.Set(0.767095, -2.400006, -0.313103);
   rc->fSign = sign;

   auto track = new TEveTrack(rc, prop);
   track->SetName(Form("Charge %d", sign));
   // daughter 0
   auto pm1 = new TEvePathMarkD(TEvePathMarkD::kDaughter);
   pm1->fV.Set(1.479084, -4.370661, 3.119761);
   track->AddPathMark(*pm1);
   // daughter 1
   auto pm2 = new TEvePathMarkD(TEvePathMarkD::kDaughter);
   pm2->fV.Set(57.72345, -89.77011, -9.783746);
   track->AddPathMark(*pm2);

   return track;
}

void track(Int_t mode = 1, Bool_t isRungeKutta = kTRUE)
{

   gSystem->IgnoreSignal(kSigSegmentationViolation, true);
   TEveManager::Create();

   auto list = new TEveTrackList();
   auto prop = g_prop = list->GetPropagator();
   prop->SetFitDaughters(kFALSE);
   prop->SetMaxZ(1000);

   if (isRungeKutta) {
      prop->SetStepper(TEveTrackPropagator::kRungeKutta);
      list->SetName("RK Propagator");
   } else {
      list->SetName("Heix Propagator");
   }

   TEveTrack *track = nullptr;
   switch (mode) {
   case 0: {
      // B = 0 no difference between signed and charge particles
      prop->SetMagField(0.);
      list->SetElementName(Form("%s, zeroB", list->GetElementName()));
      track = make_track(prop, 1);
      break;
   }

   case 1: {
      // constant B field, const angle
      prop->SetMagFieldObj(new TEveMagFieldConst(0., 0., -3.8));
      list->SetElementName(Form("%s, constB", list->GetElementName()));
      track = make_track(prop, 1);
      break;
   }

   case 2: {
      // variable B field, sign change at  R = 200 cm
      prop->SetMagFieldObj(new TEveMagFieldDuo(200, -4.4, 2));
      list->SetElementName(Form("%s, duoB", list->GetElementName()));
      track = make_track(prop, 1);
      break;
   }

   case 3: {
      // gapped field
      prop->SetMagFieldObj(new GappedField());
      list->SetElementName(Form("%s, gappedB", list->GetElementName()));

      auto rc = new TEveRecTrackD();
      rc->fV.Set(0.028558, -0.000918, 3.691919);
      rc->fP.Set(0.767095, -0.400006, 2.313103);
      rc->fSign = 1;
      track = new TEveTrack(rc, prop);

      auto marker = new TEvePointSet(2);
      marker->SetElementName("B field break points");
      marker->SetPoint(0, 0., 0., 300.f);
      marker->SetPoint(1, 0., 0., 600.f);
      marker->SetMarkerColor(3);
      gEve->AddElement(marker);
      break;
   }

   case 4: {
      // Magnetic field of CMS I.
      auto mf = new CmsMagField;
      mf->setReverseState(true);

      prop->SetMagFieldObj(mf);
      prop->SetMaxR(1000);
      prop->SetMaxZ(1000);
      prop->SetRnrDaughters(kTRUE);
      prop->SetRnrDecay(kTRUE);
      prop->RefPMAtt().SetMarkerStyle(4);
      list->SetElementName(Form("%s, CMS field", list->GetElementName()));

      auto rc = new TEveRecTrackD();
      rc->fV.Set(0.027667, 0.007919, 0.895964);
      rc->fP.Set(3.903134, 2.252232, -3.731366);
      rc->fSign = -1;
      track = new TEveTrack(rc, prop);

      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(3.576755e+00, 2.080579e+00, -2.507230e+00)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(8.440379e+01, 6.548286e+01, -8.788129e+01)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(1.841321e+02, 3.915693e+02, -3.843072e+02)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(1.946167e+02, 4.793932e+02, -4.615060e+02)));
      track->AddPathMark(TEvePathMarkD(TEvePathMarkD::kDecay, TEveVectorD(2.249656e+02, 5.835767e+02, -5.565275e+02)));

      track->SetRnrPoints(kTRUE);
      track->SetMarkerStyle(4);

      break;
   }

   case 5: {
      // Magnetic field of CMS I.
      auto mf = new CmsMagField;
      mf->setReverseState(true);
      mf->setSimpleModel(false);

      prop->SetMagFieldObj(mf);
      prop->SetMaxR(1000);
      prop->SetMaxZ(1000);
      prop->SetRnrReferences(kTRUE);
      prop->SetRnrDaughters(kTRUE);
      prop->SetRnrDecay(kTRUE);
      prop->RefPMAtt().SetMarkerStyle(4);
      list->SetElementName(Form("%s, CMS field", list->GetElementName()));

      auto rc = new TEveRecTrackD();
      rc->fV.Set(-16.426592, 16.403185, -19.782692);
      rc->fP.Set(3.631100, 3.643450, 0.682254);
      rc->fSign = -1;
      track = new TEveTrack(rc, prop);

      track->AddPathMark(TEvePathMarkD(TEvePathMarkD::kReference,
                                       TEveVectorD(-1.642659e+01, 1.640318e+01, -1.978269e+01),
                                       TEveVectorD(3.631100, 3.643450, 0.682254)));
      track->AddPathMark(TEvePathMarkD(TEvePathMarkD::kReference,
                                       TEveVectorD(-1.859987e+00, 3.172243e+01, -1.697866e+01),
                                       TEveVectorD(3.456056, 3.809894, 0.682254)));
      track->AddPathMark(TEvePathMarkD(TEvePathMarkD::kReference,
                                       TEveVectorD(4.847579e+01, 9.871711e+01, -5.835719e+00),
                                       TEveVectorD(2.711614, 4.409945, 0.687656)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(1.342045e+02, 4.203950e+02, 3.846268e+01)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(1.483827e+02, 5.124750e+02, 5.064311e+01)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(1.674676e+02, 6.167731e+02, 6.517403e+01)));
      track->AddPathMark(TEvePathMarkD(TEvePathMarkD::kDecay, TEveVectorD(1.884976e+02, 7.202000e+02, 7.919290e+01)));

      track->SetRnrPoints(kTRUE);
      track->SetMarkerStyle(4);

      break;
   }

   case 6: {
      // Problematic track from Druid
      prop->SetMagFieldObj(new TEveMagFieldDuo(350, -3.5, 2.0));
      prop->SetMaxR(1000);
      prop->SetMaxZ(1000);
      prop->SetRnrReferences(kTRUE);
      prop->SetRnrDaughters(kTRUE);
      prop->SetRnrDecay(kTRUE);
      prop->RefPMAtt().SetMarkerStyle(4);
      list->SetElementName(Form("%s, Some ILC Detector field", list->GetElementName()));

      auto rc = new TEveRecTrackD();
      rc->fV.Set(57.1068, 31.2401, -7.07629);
      rc->fP.Set(4.82895, 2.35083, -0.611757);
      rc->fSign = 1;
      track = new TEveTrack(rc, prop);

      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(1.692235e+02, 7.047929e+01, -2.064785e+01)));
      track->AddPathMark(
         TEvePathMarkD(TEvePathMarkD::kDaughter, TEveVectorD(5.806180e+02, 6.990633e+01, -6.450000e+01)));
      track->AddPathMark(TEvePathMarkD(TEvePathMarkD::kDecay, TEveVectorD(6.527213e+02, 1.473249e+02, -8.348498e+01)));

      track->SetRnrPoints(kTRUE);
      track->SetMarkerStyle(4);

      break;
   }
   };

   if (isRungeKutta)
      list->SetLineColor(kMagenta);
   else
      list->SetLineColor(kCyan);

   track->SetLineColor(list->GetLineColor());

   gEve->AddElement(list);
   list->AddElement(track);

   track->MakeTrack();

   TEveViewer *ev = gEve->GetDefaultViewer();
   TGLViewer *gv = ev->GetGLViewer();
   gv->SetGuideState(TGLUtil::kAxesOrigin, kTRUE, kFALSE, nullptr);

   gEve->Redraw3D(kTRUE);
   gSystem->ProcessEvents();

   gv->CurrentCamera().RotateRad(-0.5, 1.4);
   gv->RequestDraw();
}

Author

Alja Mrak-Tadel

Definition in file track.C.
